| Storage |
| SATA |
1x SATA* (22-pin) (*Depends on CPU module) |

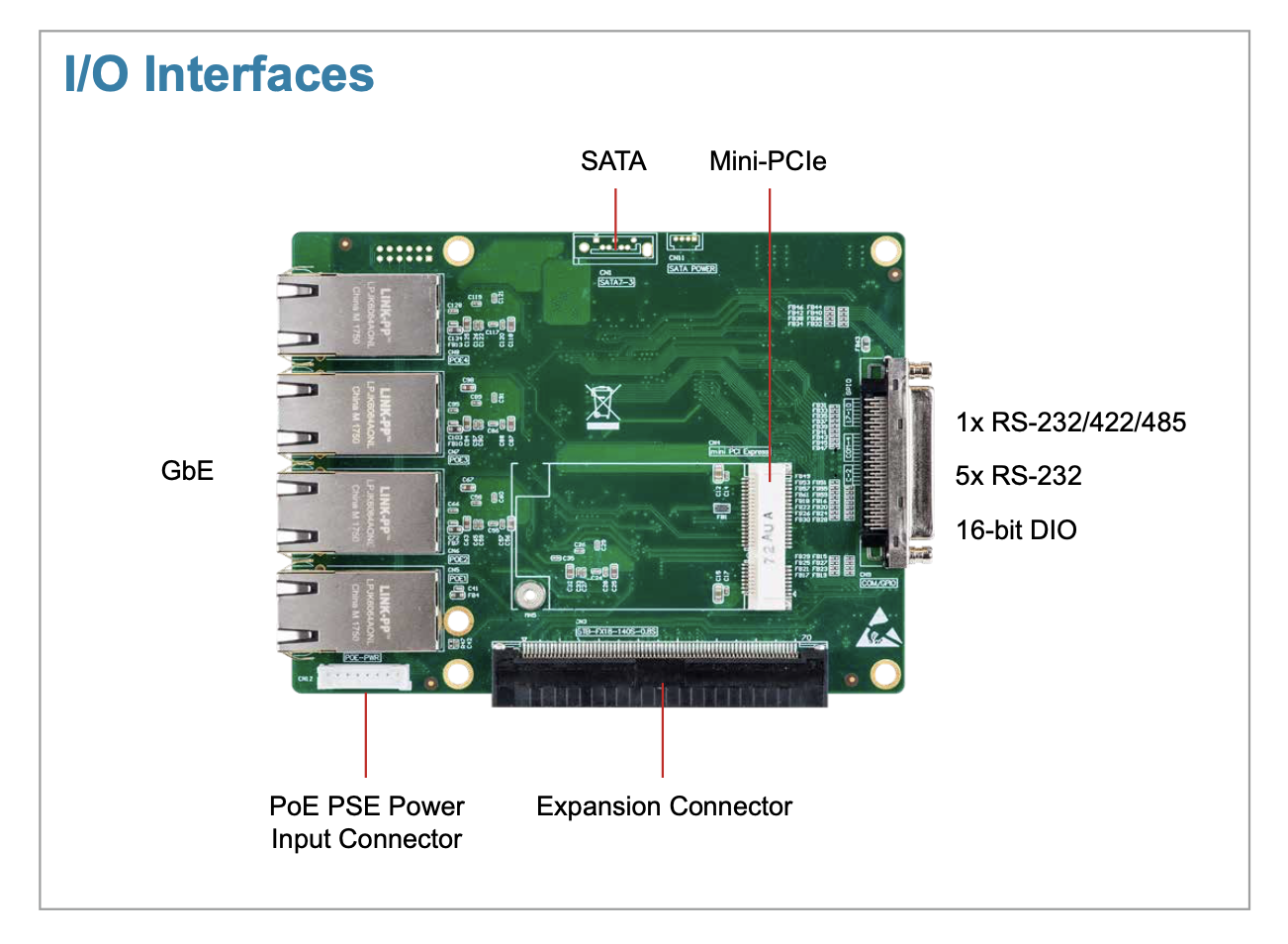

| I/O Interface |
| Ethernet |
4x GbE with PoE PSE power-input |
| UART (Serial Port) |
1x RS-232/422/485, 5x RS-232 |
| Others |
| Smart Battery Management |
ACPI 5 .0 compliant |
| Expansion |
| Mini-PCle |
1x Full-length Mini-PCIe socket* (*Depends on CPU module) |
| Operating System |
| Windows/Linux |
Depends on CPU module |
| Mechanical |

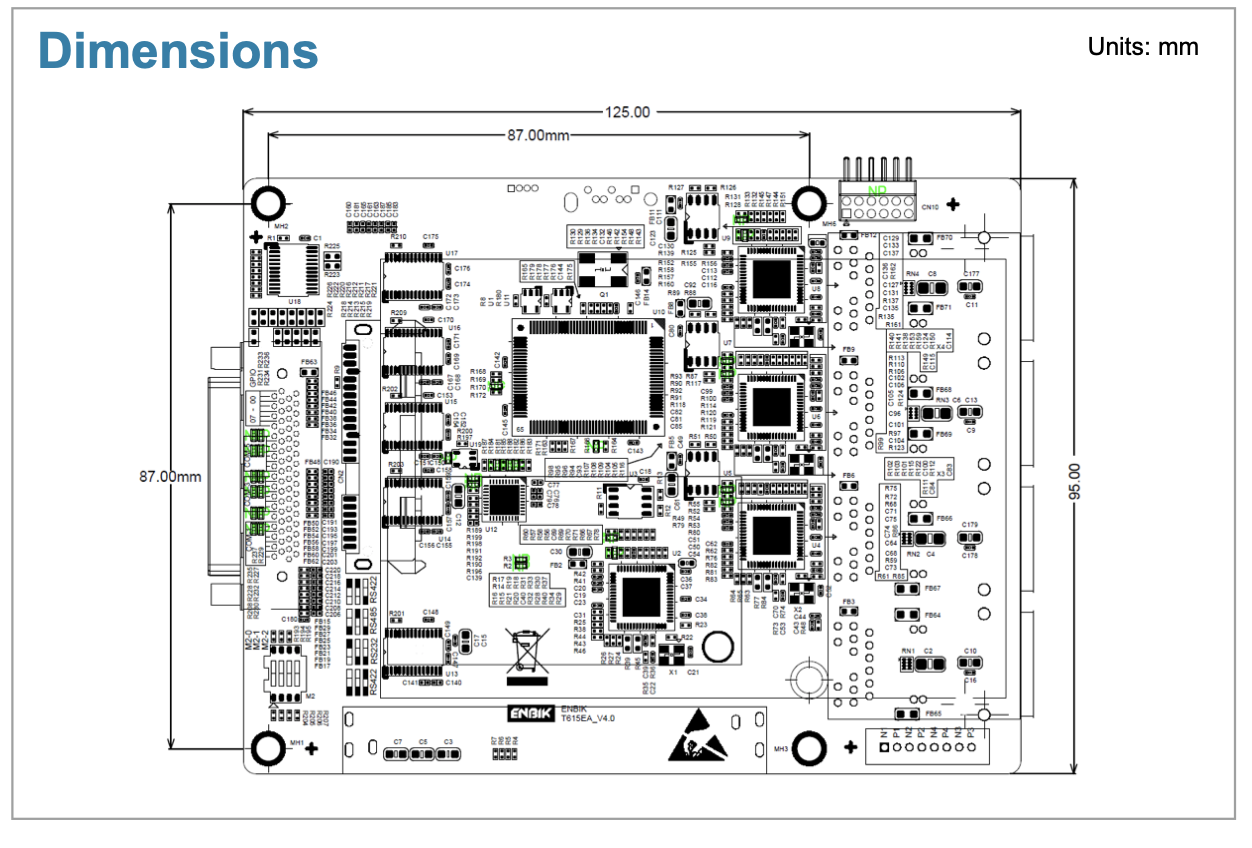

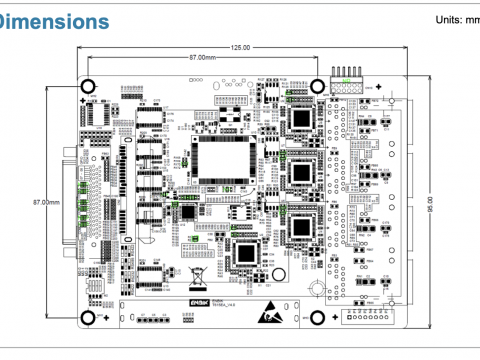

| Dimensions |
125 x 95mm |
| Environment |
| Operation Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-45°C ~ 85°C |
| Operation Humidity |
10% to 90%, non-condensing |
| Storage Humidity |
5% to 95%, non-condensing |
| Certification |
CE/FCC Class A |
