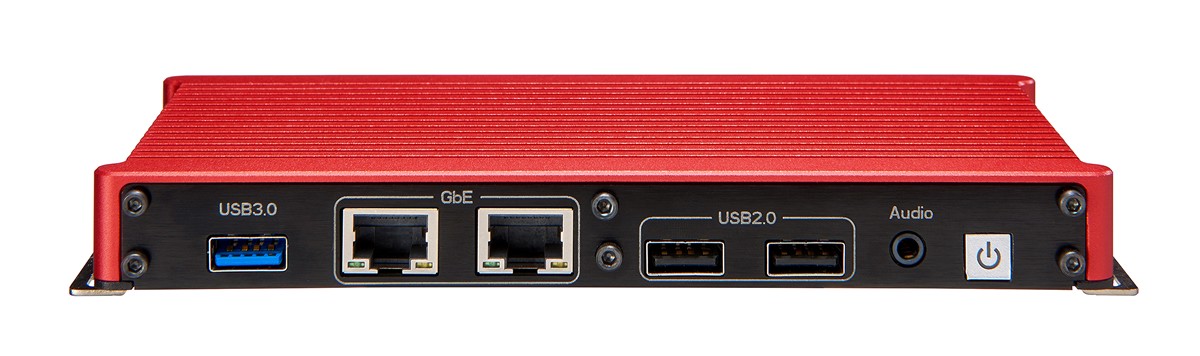

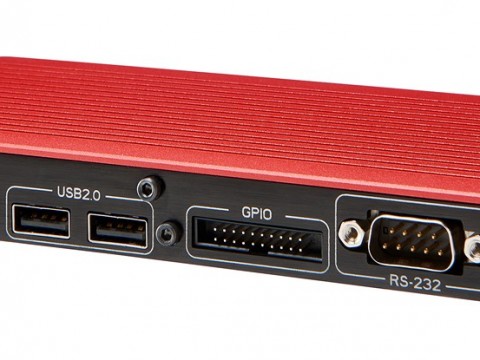

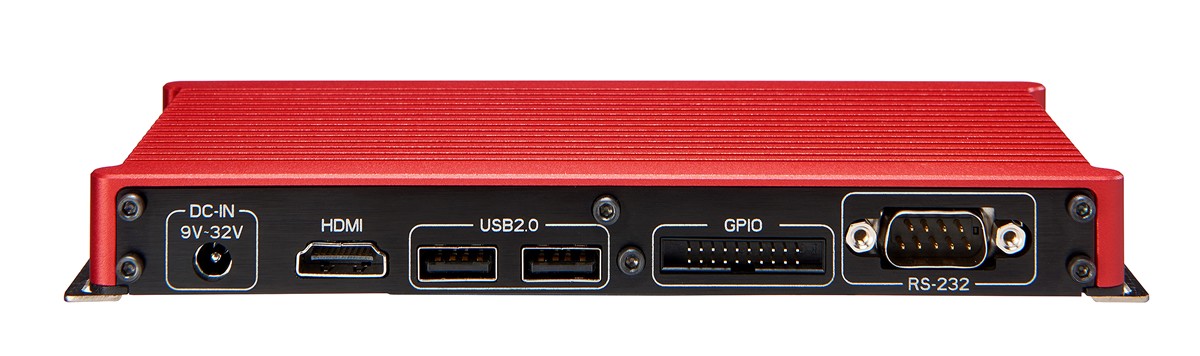

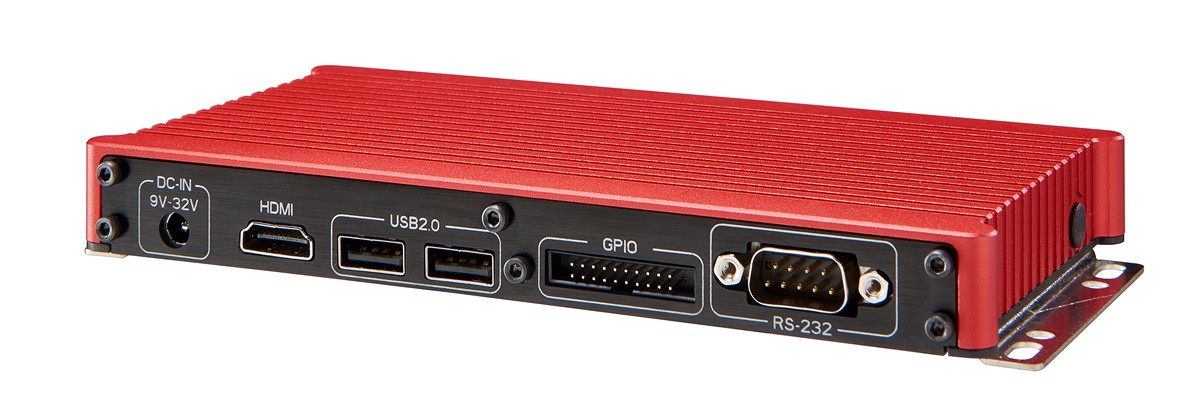

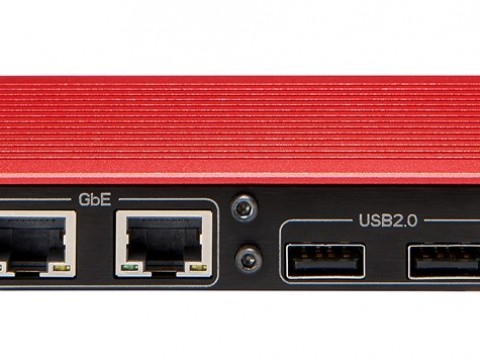

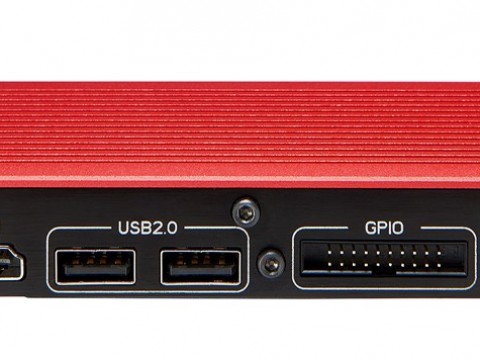

SmartSL Series U7-100

Box PC

Ultra-Slim System with Intel® Celeron® N2807 CPU, 4GB on-board memory, 2x GbE, 1x USB3.0/2.0, 4x USB2.01x HDMI

Part number: U7-100

Features

  • Rich I/O design:
    2 x Mini-PCIe with USIM socket
    1 x mSATA socket
    16-bit programmable GPIO
    2 x GbE
    1 x USB3.0 / 2.0, 4 x USB2.0
    1 x UART
  • Wide Range DC Voltage Input: 9V~32V
  • 3rd Gen. Intel® Atom™ Processor, Celeron® Processor Bay Trail platform
  • Dimension: 160 x 88mm x 19.7mm
Features
Intel HDMI

SmartSL Series U7-100

VETRON presents a series of extremely lean, fanless industrial computers. The versatility of the products is a real asset, as the use of Qseven CPU modules provides high flexibility in processor performance and Qseven features such as memory, etc. The devices are based on the Bay Trail architecture from Intel. Thanks to Qseven-Modultechnik, the interface configuration can also be individually tailored to the requirements of the customers and their application - even with small quantities. 1 x USB 2.0, 1 x RS-232, 1 x DP, 2 x Gigabit Ethernet and 1 x audio (line-out) / MIC are standard features. There are also two slots for full-size PCI Express mini cards.


With dimensions of 160 x 88 x 19 mm, the SmartSL U7-100 series is about the size of a smartphone, providing a compact solution for factory automation (industrial 4.0), machine control and embedded applications. The devices require a supply voltage between 9 Vdc and 32 V dc (± 5%) and can be used at temperatures from 0 ° C to + 50 ° C.

System

CPU

  • Intel® Celeron® N2807 Dual Core 1.58GHz, L2 cache 1MB
  • Intel® Atom® E3815 1.46GHz Single Core, L2 cache 512KB

Chipset​

  • SoC integrated

BIOS​

  • AMI Aptio® UEFI 2.x firmware

Graphics​

  • Intel® HD Graphics

System Memory​

  • Onboard 4Gb DDR3L

Storage​

  • 1 x mSATA
  • 2 x USIM slot

Watchdog Timer​

  • Multistage watchdog

 I/O

  • 1 x USB 3.0, 4 x USB2.0
  • 1 x RS-232
  • 1 x HDMI
  • 1 x 8-bit Isolation GPI
  • 1 x 8-bit Isolation GPO
  • 2 x GbE Ethernet
  • 1 x Audio (Line-out), 1 x MIC
  • 1 x Power Button

Expansion slot

  • 2 x full-size PCI Express Mini card (PCIe+USB+USIM)

Power supply

  • DC Input 9V~32V±5%

Dimensions

  • 173mm x 88mm x 19.7mm

Environmental

Operating Temperature​

  • 0°C ~ +50°C

Storage Temperature​​

  • -45°C ~ +85°C

Operating Humidity​

  • 10% - 90% (non-condensing)

Storage Humidity​

  • 5% - 95% (non-condensing)

Certificate

  • CE / FCC class A

Optional OS Installation

  • Microsoft® Windows 8
  • Microsoft® Windows 8 embedded
  • Microsoft® Windows 7
  • Microsoft® Windows 7 embedded compact
  • Linux
