SmartSL Plus

Box PC

Intel® Celeron® J1900 2.0 GHz, Quad Core L2 cache 2MB, 10W TDP

Part number: U7-230


  • Ultra-slim size: 196 x 100 x 38.5mm (7.72" x 3.94" x 1.50")
  • 3rd gen Intel® AtomTM Processor, Celeron® Processor (formerly Bay Trail)
  • Wide-Range DC voltage input: 9V~32V
  • Cableless, fanless system, aluminum alloy structure
  • Display: 1x DVI or VGA
  • 3x RJ45 GbE Ethernet with 802.3at PoE PSE
  • 1x Mini-PCIe with USIM socket, 1x mSATA socket
  • 1x USB 3.0/2.0 port, 4x USB2.0 ports
  • 8-bit isolated GPI & 8-bit isolated GPO
  • 1x UART RS-232/422/485 switchable port
  • Features
    3rd Generation Intel® AtomTM/Celeron® Processor Ultra-slim Fanless Box Computer


    CPU Intel® Celeron® J1900 2.0 GHz, Quad Core L2 cache 2MB, 10W TDP
    Intel® Celeron® N2807 1.58 GHz, Dual Core L2 cache 1MB, 4.5W TDP
    Chipset Integrated in SoC
    BIOS AMI Aptio® UEFI 2.x firmware
    Memory DDR3L with 1333 MT/s, 8GB (Max.)


    Display 1x DVI-D (U7-200D); 1x VGA (U7-200V)
    Controller Intel® HD Graphics Generation 7


    DC Input 9~36VDC

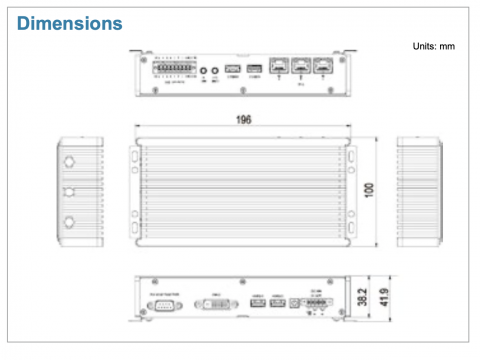

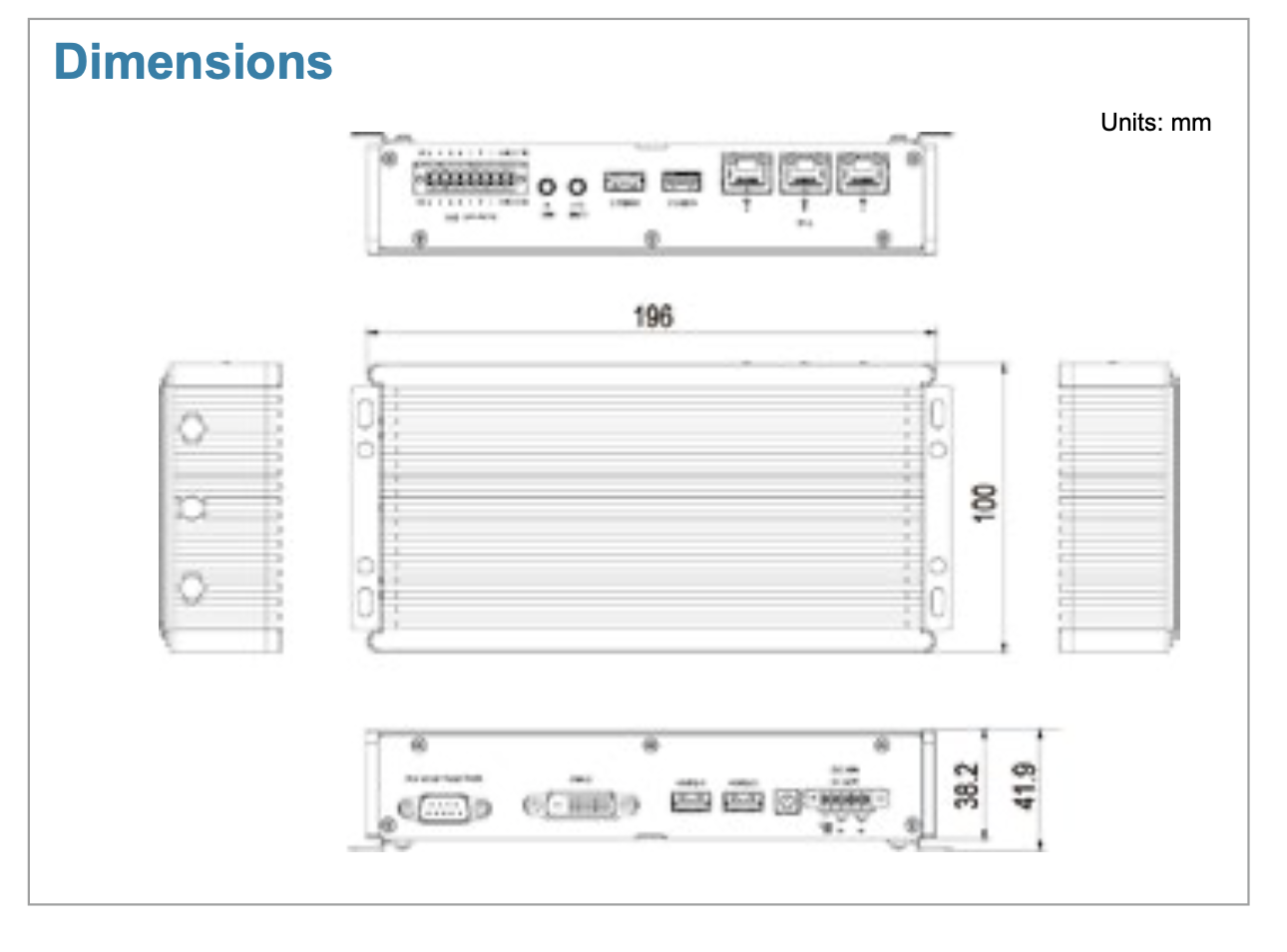

    Dimensions (WxDxH) 196 x 100 x 38.5mm (7.72" x 3.94" x 1.50")

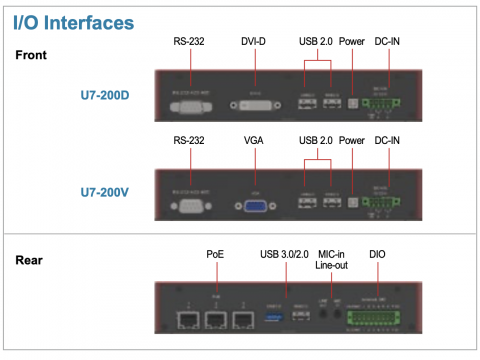

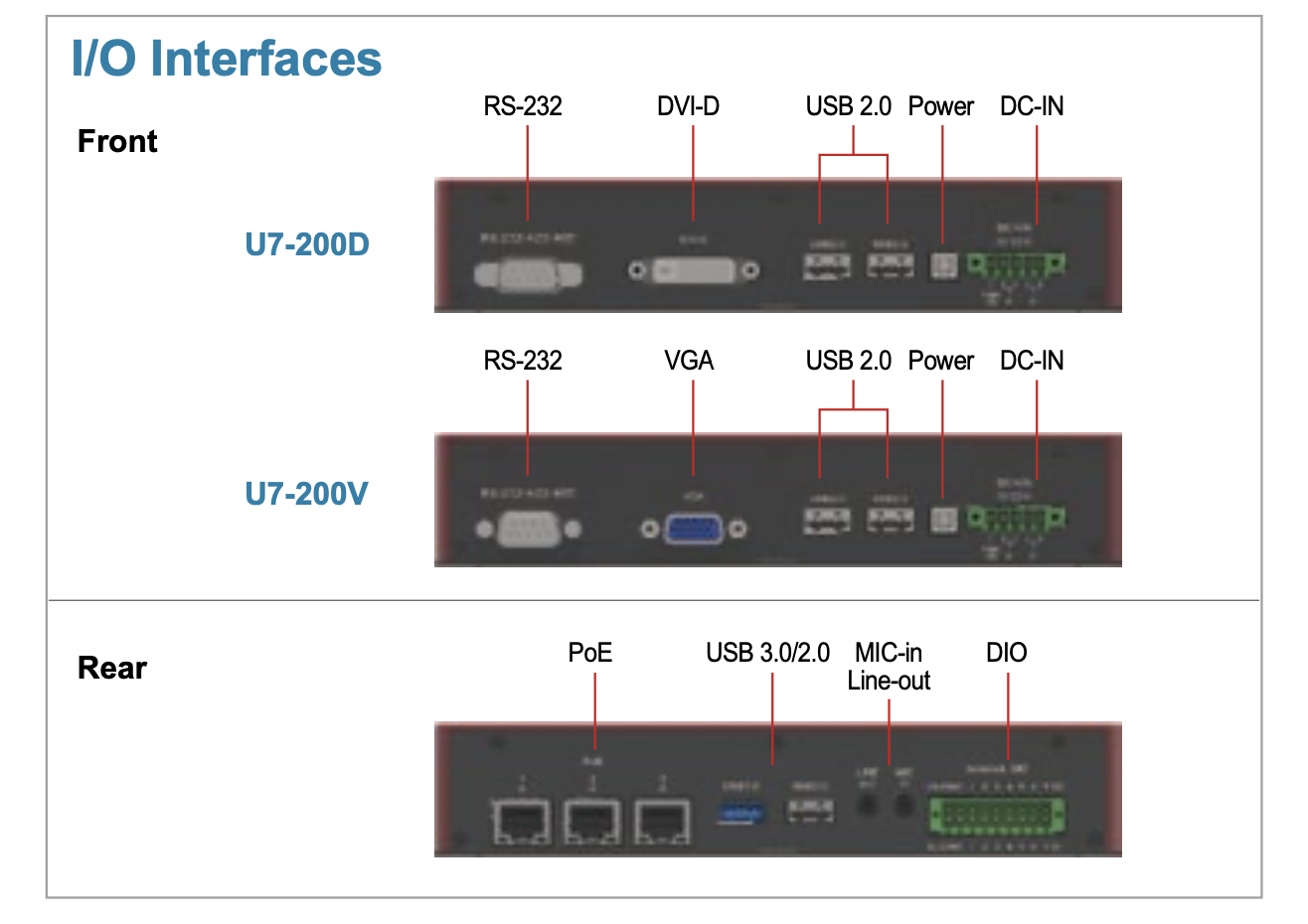

    External IO

    Ethernet 3x RJ45 GbE with 802.3at PoE PSE
    USB 3.0/2.0 1x USB 3.0/2.0 port, 3x USB 2.0 ports
    COM 1x RS-232/422/485 switchable
    Digital I/O 8-bit Isolated GPI & 8-bit Isolated GPO
    Audio 1x Mic in, Line out


    SATA 1x mSATA socket
    SIM 2x USIM slot

    Expansion Slot

    Mini-PCle 1x full-Length Mini-PCIe socket (PCIe + USB + USIM)


    Watchdog Multistage Watchdog
    Antenna 3x antenna openings


    Operating Temperature Operation: -20°C~60°C
    Storage Temperture Storage: -40°C~85°C Operation: 10% to 90%
    Operating Humidity 10% ~ 90% Humidity, non-condensing
    Storage Humidity 5% ~ 95% Humidity, non-condensing
    Certification CE/CB/FCC Class A

    OS Support

    Windows Windows 10
    Windows 10 IoT
    Windows 8
    Windows Embedded 8 Standard
    Windows 7
    Windows 7 embedded compact
    Linux Linux

    Ordering Information

    Model Name
    U7-230D Intel® Celeron® N2807, 4GB
    U7-131 Intel® AtomTM E3815, 1GB
    U7-231D Intel® Celeron® E815, 1GB
    U7-230V Intel® Celeron® N2807, 4GB
    U7-231V Intel® Celeron® E815, 1GB

    Optional Accessories

    Model Name
    SSD mSATA 32GB/64GB/128GB/256GB
    Adapter 12VDC/40W power adapter
    Power Cord US / Germany / UK / Australia / China
    Wireless Module  3G/3G+GPS/4G/4G+GPS/4G+WIFI
