SmartEC

Box PC

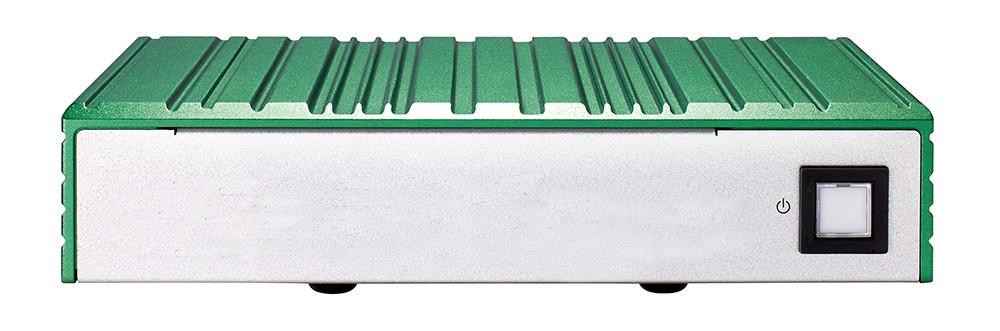

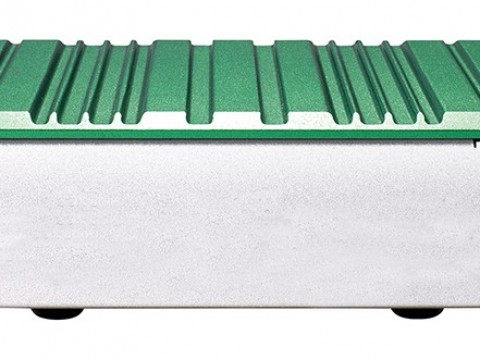

Fanless Embedded Box PC with Multi I/O Functions

Part number: EBC-3330

Features

  • Fanless design with low power consumption
  • Supports Intel® Bay Trail platform
  • 1 x 204pin DDR3L SO-DIMM 1333MHz (max up to 8Gb)
  • Supports VESA Mount
  • Standard I/O:
    1 x USB3.0, 1 x USB2.0
    Dual display for 1 VGA and 1 High Definition video output
    1 x mSATA
    12V power input
Features
Intel

The Fanless Embedded Box PC with multi I/O interfaces.

The SmartEC series is designed in ultra-compact size which is using the latest Intel® Bay Trail platform
in low power consumption mode. The SmartSignage unit is fanless and supports dual displays through VGA and high definition video output ports. It also has sufficient storage and expansion capability to fit the
any special requirements you might have.

SmartEC is a solution which can meet various applications such like thin clients, factory automation and digital signage with limited space. Multi-IO interfaces which provide the maximum capability for most gateways connecting to automation devices.


Detailed features:


CPU
Intel® Bay Trail platform
System Memory
1 x 204 pin DDR3L SO-DIMM 1333 max up to 8GB
Chipset
SoC integrated
Storage
1 x mSATA supported
Watchdog Timer
255 levels, 255 sec.

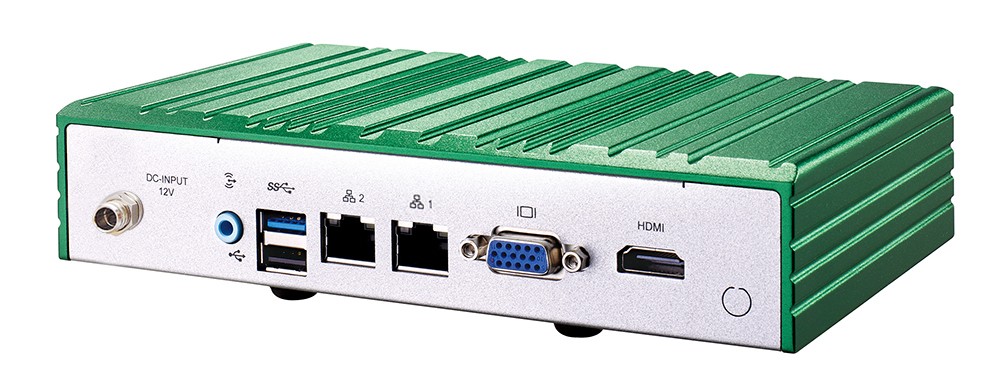

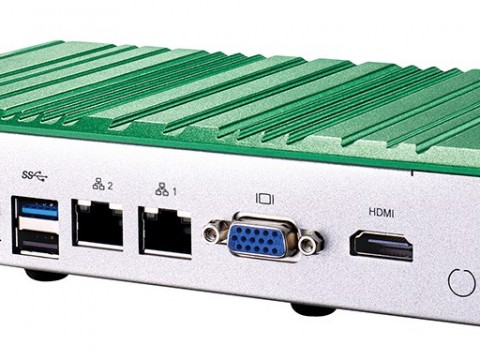

External I/O
  • 1 x VGA , 1 x high definition video output
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 2 x 10/100/1000Mbps Ethernet
  • 1 x power on/off button
  • 1 x Audio (Line-Out)

WiFi
Optional for 802.11 b/g/n

Power Supply
12V DC

Expansion Slot
1 x full-size Mini card (for mSATA)
1 x half-size PCI Express Mini card (for WiFi)

Dimensions
190(W) x 115.5(D) x42.2(H) mm
Weight
0.8kg(1.8lb)/1.4kg(3.11b)
Mounting Type
VESA

Operation Temperature
0~+60°C,(32F – 140 F)
Relative Humidity
10%-90% (non-condensing)

Certification
CE

OS Information
 Windows® 7 Professional 64bit with SP1,
 Windows® Embedded Standard 7 64bit with SP1,
 Linux Ubuntu 14.04.3 LTS 64bit
