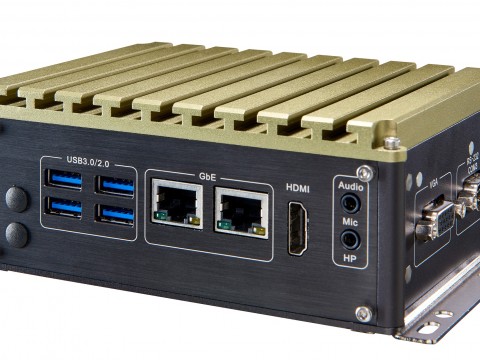

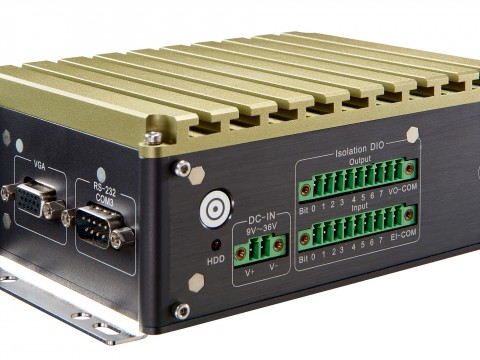

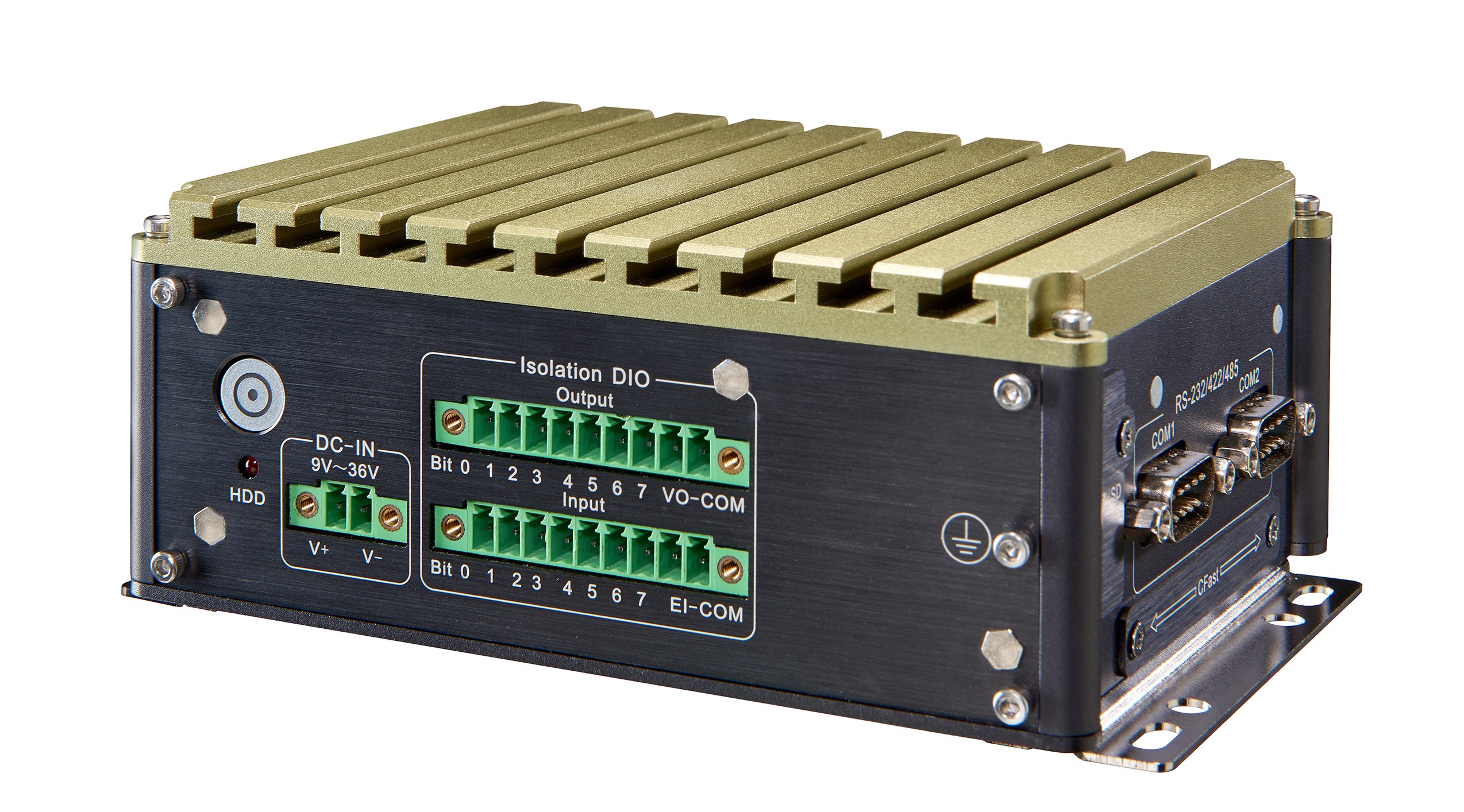

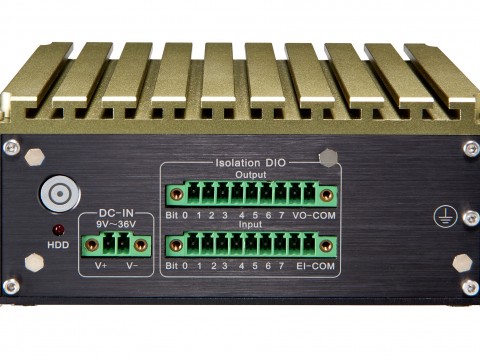

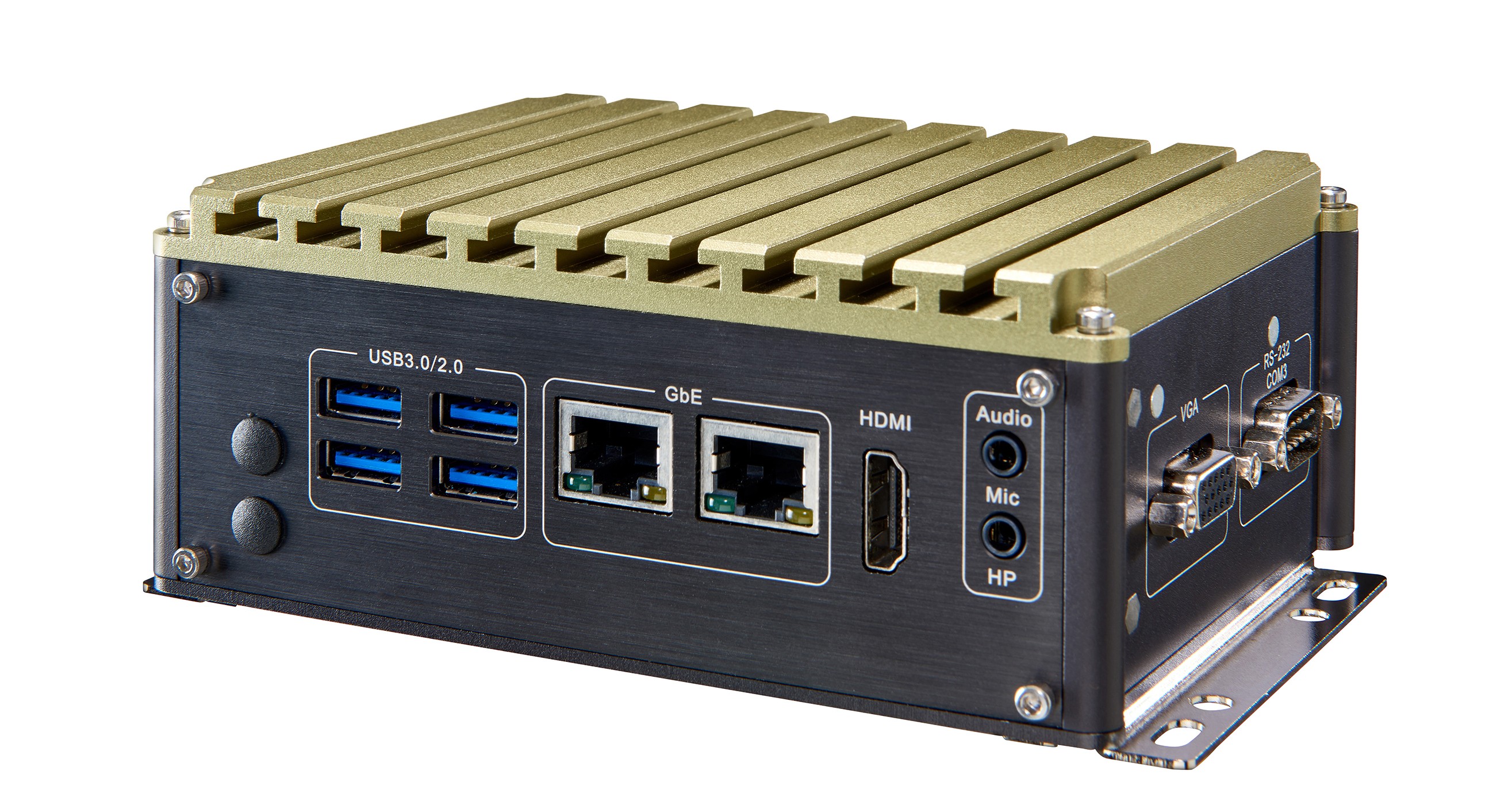

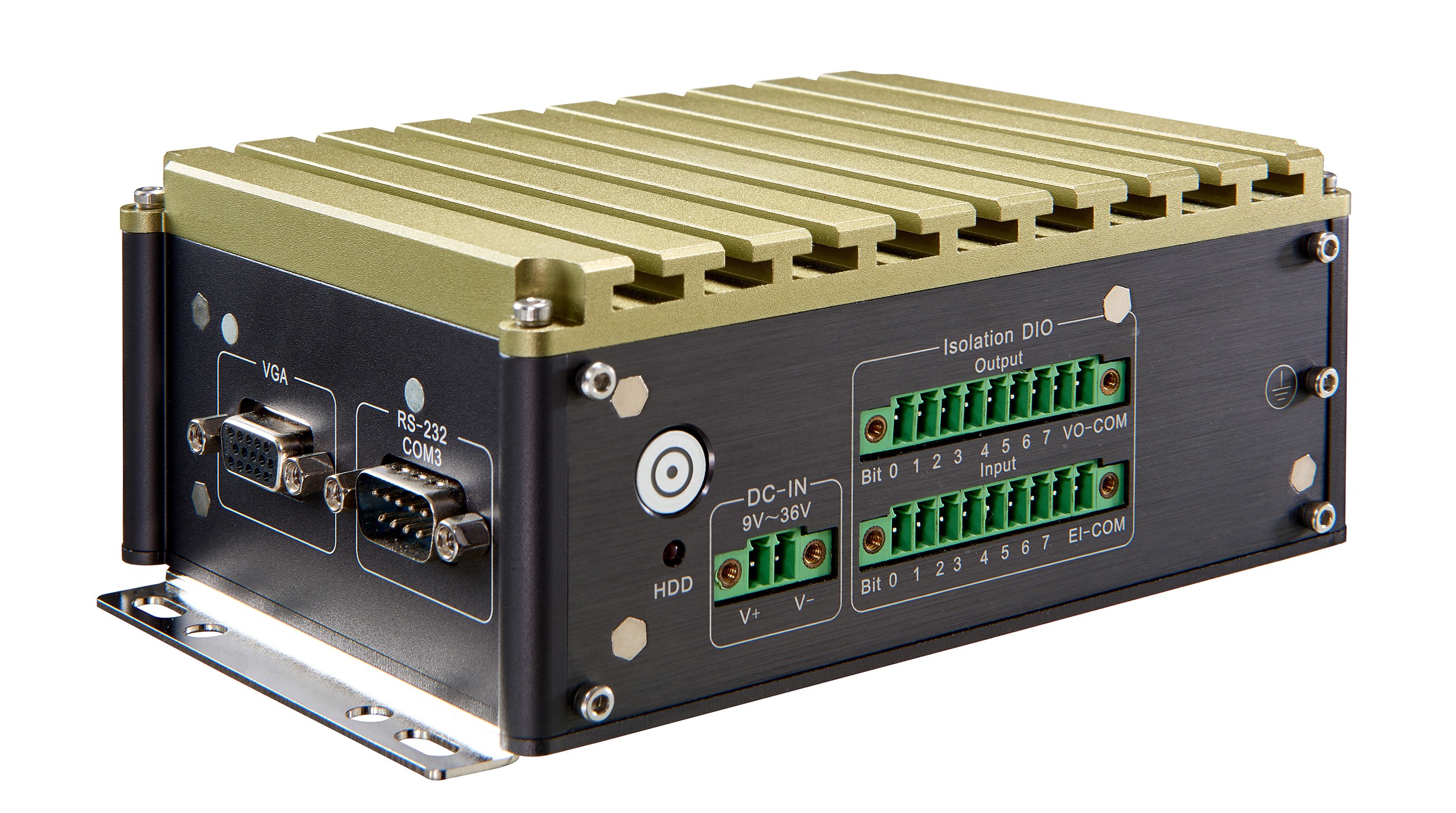

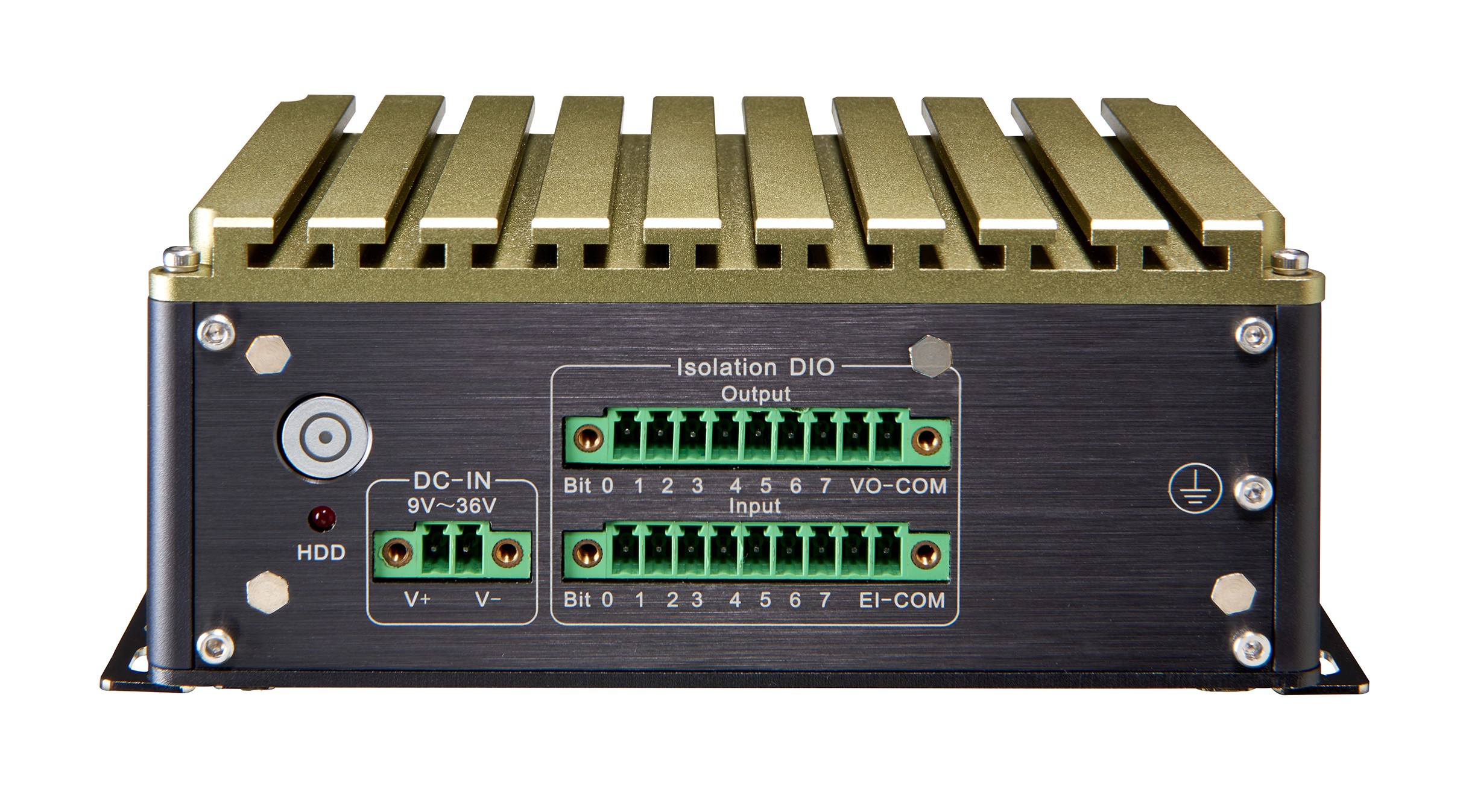

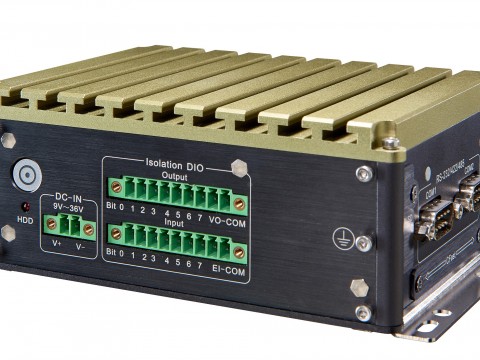

SmartAIO Series U7-300T

Hardware

Ultra-compact Industrial PC with 1 x VGA, 3 x UARTs ( 2 x RS-232/422/485, 1 x RS-232)

Part number: U7-300T

Features

  • Rich I/O design:
    1 x full length mini-PCIe + USIM
    1 x half length mini-PCIe
    1 x mSATA, 1 x SATA
    8-bit isolation GPI, 8-bit isolation GPO
    2 x GbE
    4 x USB 3.0, 3 x UART
  • Wide Range DC Voltage Input: 9V~32V
  • 3rd Gen. Intel® Atom™ Processor, Celeron® Processor Bay Trail platform
  • Dimension: 138 x 100 x 57mm ( 5.43”x 3.93”x 2.24”)
Features


System

CPU

  • Intel® Celeron® J1900 Quad Core 2.00GHz, L2 cache 2MB
  • Intel® Celeron® N2807 Dual Core 1.58GHz, L2 cache 1MB

Chipset​

  • SoC integrated

BIOS​

  • AMI Aptio® UEFI 2.x firmware

Graphics​

  • Intel® Gen.7 HD Graphics

System Memory​

  • Base on CPU Modules, Max to 8GB

Storage​

  • 1 x mSATA and 1 x SATA connector
  • 2 x mSATA (Optional)
  • 2.5"HDD/SSD (Optional)
  • CFast slot (Optional)
  • 1 x push-push USIM slot

Watchdog Timer​

  • Multistage watchdog

 I/O

  • 4 x USB 3.0/2.0
  • 2 x RS-232/422/485, 1 x RS-232
  • 1 x HDMI
  • 1 x VGA
  • 1 x 8-bit Isolation GPI
  • 1 x 8-bit Isolation GPO
  • 2 x GbE Ethernet
  • 1 x Audio (Line-out), 1 x MIC
  • 1 x Power Button
  • 1 x LED for (HDD/SSD)

Expansion slot

  • 1 x full-size PCI Express Mini card (PCIe+USB+USIM)
  • 1 x half-size PCI Express Mini card (PCIe+USB)
  • 1 x USB2.0 internal

Power supply

  • 2-Pin Terminal Block DC Input 9V~32V±5%
  • DC internal Output 5V/0.75A ,12V/0.75A

Dimensions

  • 138mm x 100mm x 57 mm

Environmental

Operating Temperature​

  • 0°C ~ +60°C
  • -20°C ~ +70°C (Optional)

Storage Temperature​​

  • -45°C ~ +85°C

Operating Humidity​

  • 10% - 90% (non-condensing)

Storage Humidity​

  • 5% - 95% (non-condensing)

Certificate

  • CE / FCC class A

Optional OS Installation

  • Microsoft® Windows 8
  • Microsoft® Windows 8 embedded
  • Microsoft® Windows 7
  • Microsoft® Windows 7 embedded compact
  • Linux
