Smart Q7

Hardware

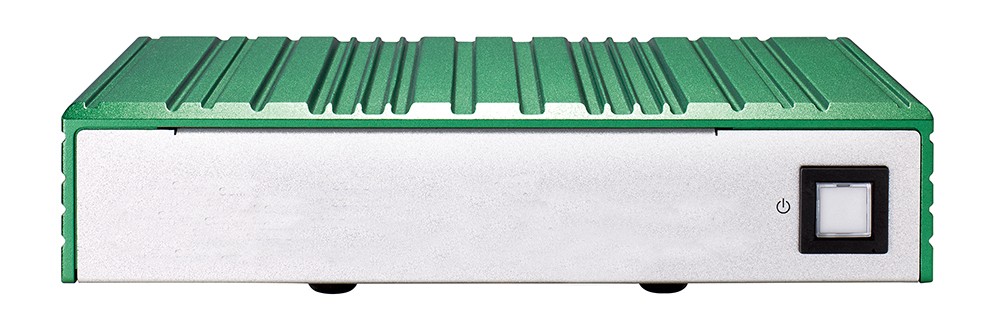

Fanless Embedded Box PC with Multi I/O Functions

Part number: EBC3370

Features

  • Fanless design with low power consumption
  • Supports VESA mount
  • Standard I/O:
    1 x USB 3.0, 1 x USB 2.0
    1 x High definition video output
    1 x mSATA supported
    12V Power input


System

Form Factor

  • Qseven solution

System Memory

  • Base on Qseven modules

Storage

  • 1 x mSATA supported

Watchdog Timer

  • 255 levels, 255 sec.

External I/O

  • 1 x high definition video output
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 2 x 10/100/1000Mbps Ethernet
  • 1 x power on/off button
  • 1 x Audio (Line-Out)

WiFi

  • Optional for 802.11 b/g/n

Power Supply

  • 12V DC

Expansion Slot

  • 1 x full-size PCI Express Mini card (either MiniCard or mSATA, and by jumper setting)
  • 1 x half-size PCI Express Mini card (for WiFi)

Mechanical

Dimension

  • 190mm (W) x 115.5mm (D) x42.2mm (H)

Weight

  • 0.8kg / 1.4kg

Mounting Type

  • VESA

Environmental

Operating Temperature

  • 0°C ~ + 60°C

Relative Humidity

  • 10% - 90% (non-condensing)

Certificate Software Support

Certification

  • CE

OS Information

  • Windows 7
  • Windows 8.1
