Q728H/Q728HV

Qseven Carrier Board

Qseven Rev. 2.0 Compliant

Part number: Q728H-3RP and Q728HV-3R

Features

  • Qseven Rev. 2.0 compliant
  • Compact size: 175 x 95 mm
  • Wide-Range DC voltage input: 9V~32V
  • Dual display: 1x HDMI, 1x VGA
  • 3x RJ45 GbE Ethernet with 802.3at PoE PSE
  • 1x Mini-PCIe with USIM socket, 1x mSATA socket
  • 1x USB 3.0/2.0, 3x USB 2.0, 1x USB 2.0 internal
  • Isolated 8-bit DI & 8-bit DO
  • 1x RS-232
Features
Qseven Carrier Board
CPU Module
Qseven Qseven Rev. 2.0 compliant
CPU x86 CPU
Graphics
VGA 1x VGA optional (Q728HV)
Storage
SATA 1x mSATA socket
USIM 1x USIM socket

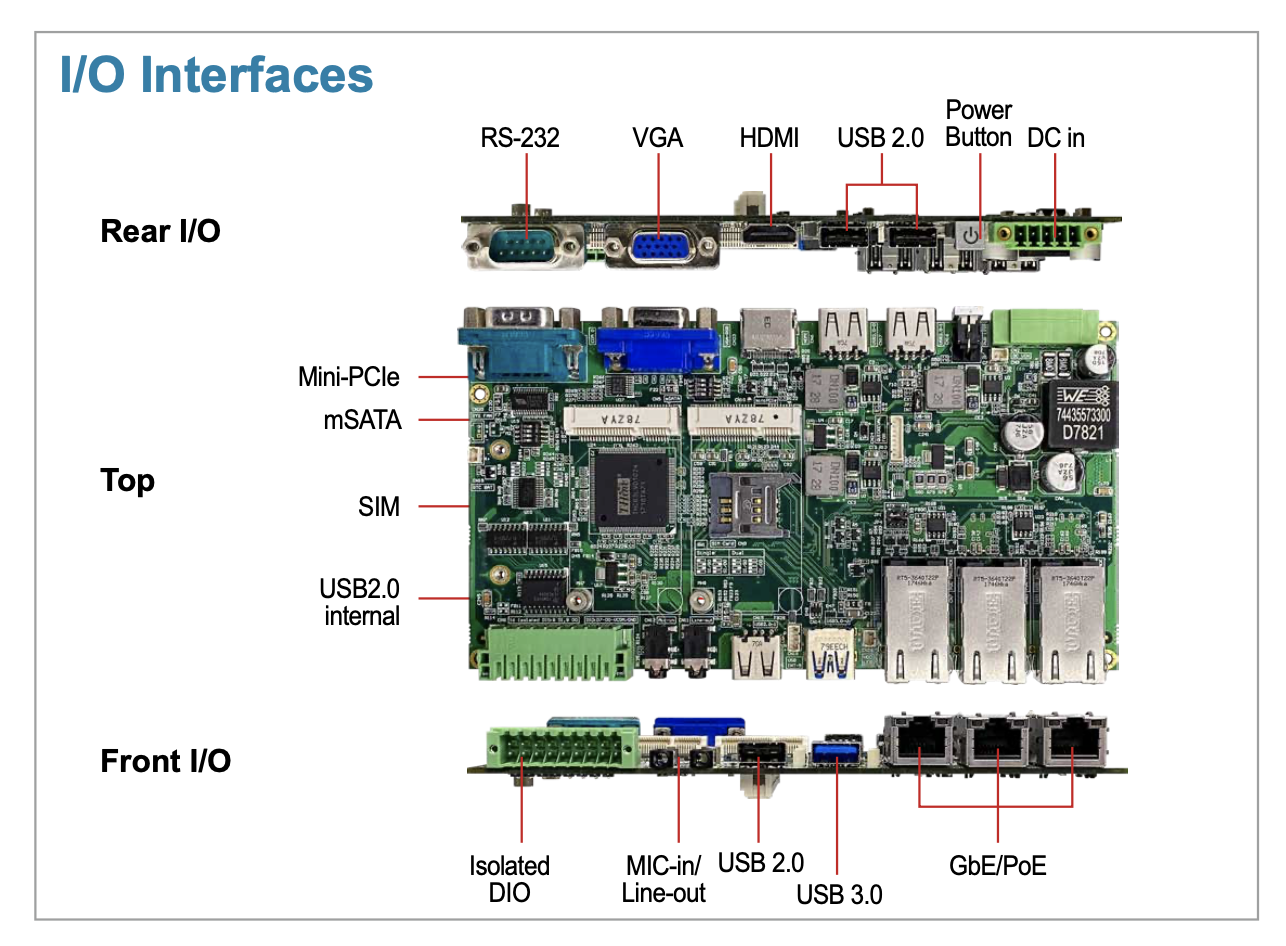

I/O Interface
Ethernet 3x RJ45 GbE with 802.3at PoE PSE (Q728H-3RP, Q728HV-3RP)
3x RJ45 GbE (Q728H-3R, Q728HV-3R)
USB 1x USB 3.0, 3x USB 2.0, 1x USB 2.0 internal
Audio 1x Line-out, 1x MIC-in
UART (Serial Port) 1x RS-232
Digital I/O Isolated 8-bit DI & 8-bit DO
Expansion
Mini-PCle 1x Full-Length Mini-PCIe socket (PCIe + USB + USIM)
Other
Watchdog Multistage
Smart Battery Management ACPI 5.0 compliant
Power
DC Input Voltage 9V~32Vdc
Operating System
Windows/Linux Depends on Q7 CPU module
Mechanical

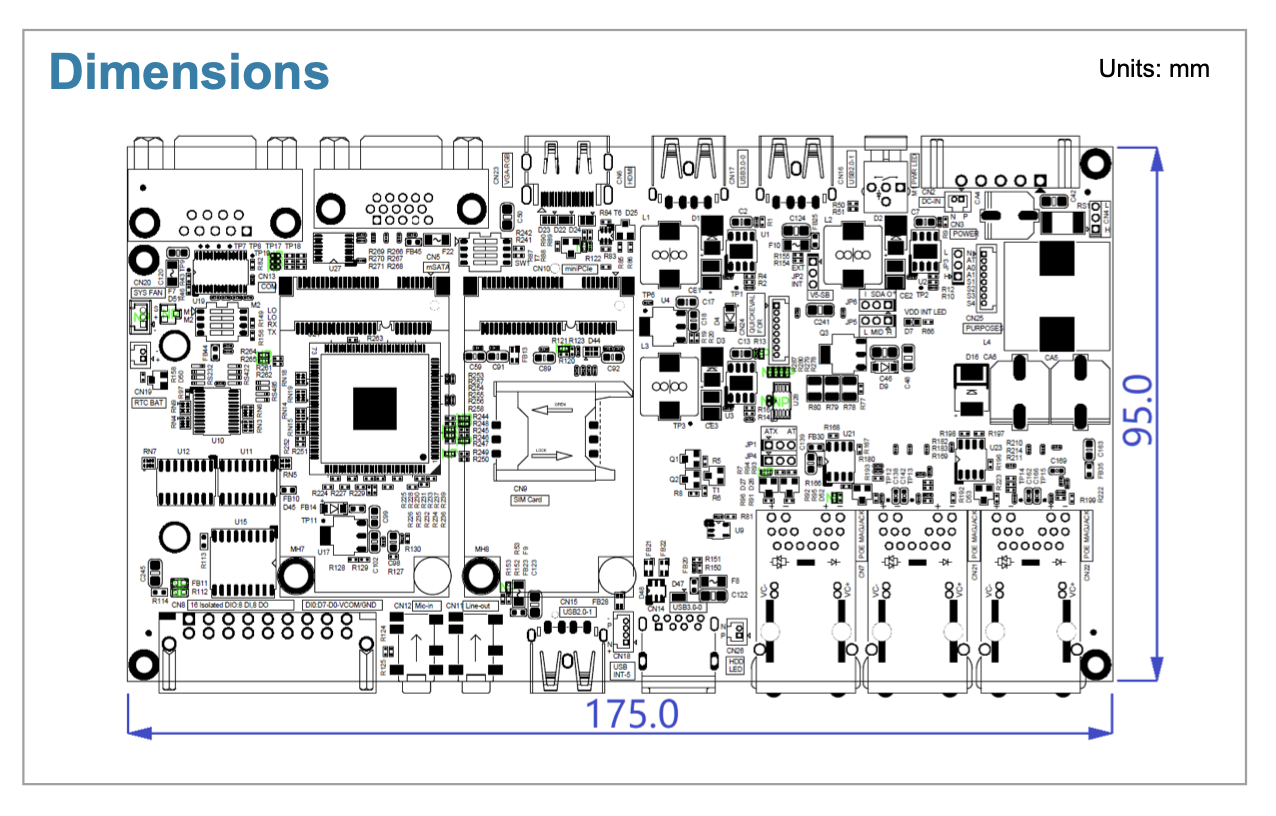

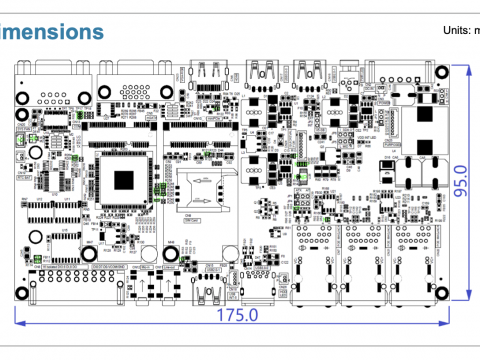

Dimensions 175 x 95mm
Environment
Operation Temperature -20°C ~ 70°C
Storage Temperature -45°C ~ 85°C
Operation Humidity 10% to 90%, non-condensing
Storage Humidity 5% to 95%, non-condensing
Certification
Safety Certifications CE/FCC Class A


I/O Comparison Chart

Model Name HDMI VGA GbE(RJ45) GbE/PoE(RJ45) DIO USB 3.0 USB 2.0 RS-232 Mini-PCle mSATA
Q728H-3RP 1     3 8-bit isolated DI & 8-bit isolated DO 1 4 1 1 1
Q728H-3R 1   3
Q728HV-3RP 1 1   3
Q728HV-3R 1 1 3

Ordering Information:

Model Name   Article Number (A/N)
Q728H-3RP Qseven Carrier Boards,1x HDMI, 3x RJ45 GbE/PoE, 1x USB 3.0, 4x USB 2.0, 1x RS-232, Isolated 8-bit DI& 8-bit DO 7111-728300
Q728HV-3RP Qseven Carrier Boards,1x HDMI, 1x VGA, 3x RJ45 GbE/PoE, 1x USB 3.0, 4x USB 2.0, 1x RS-232, Isolated 8-bit DI& 8-bit DO 7111-728400
Q728H-3R Qseven Carrier Boards,1x HDMI, 3x RJ45 GbE, 1x USB 3.0, 4x USB 2.0, 1x RS-232, Isolated 8-bit DI& 8-bit DO 7111-728310
Q728HV-3R Qseven Carrier Boards,1x HDMI, 1x VGA, 3x RJ45 GbE, 1x USB 3.0, 4x USB 2.0, 1x RS-232, Isolated 8-bit DI& 8-bit DO 7111-728410
