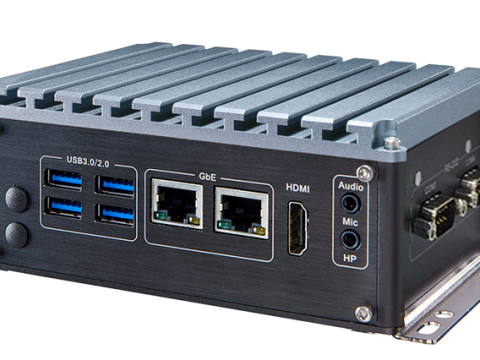

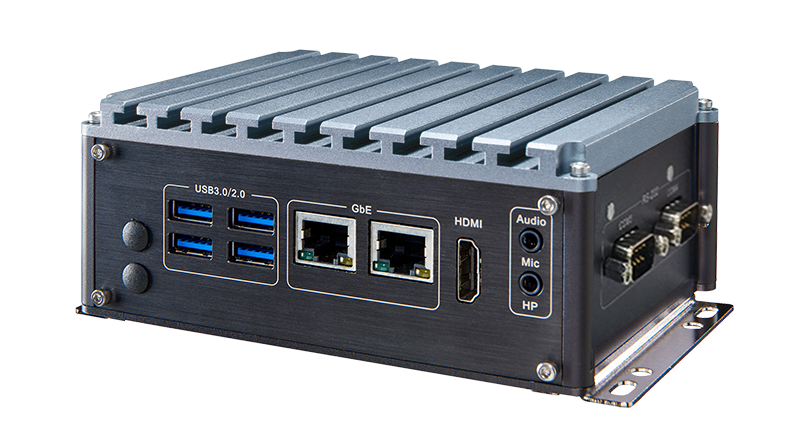

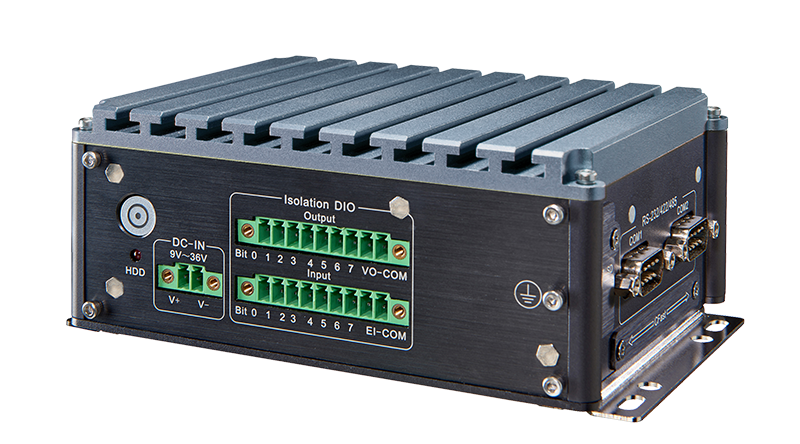

SmartAIO Series U7-300

Hardware

Ultra-compact Industrial PC with 4 x UARTs ( 2 x RS-232/422/485, 2 x RS-232 )

Part number: U7-300

Features

  • Rich I/O design:
    1 x full length mini-PCIe + USIM
    1 x half length mini-PCIe
    1 x mSATA, 1 x SATA
    8-bit isolation GPI, 8-bit isolation GPO
    2 x GbE
    4 x USB 3.0, 4 x UART
  • Wide Range DC Voltage Input: 9V~32V
  • 3rd Gen. Intel® Atom™ Processor, Celeron® Processor Bay Trail platform
  • Dimension: 138 x 100 x 57mm ( 5.43”x 3.93”x 2.24”)
Features

System

CPU Intel® Celeron® J1900 Quad Core 2.00GHz, L2 cache 2MB
Intel® Celeron® N2807 Dual Core 1.58GHz, L2 cache 1MB
Chipset SoC Integrated
BIOS AMI Aptio® UEFI 2.x firmware
Graphics Intel® Gen.7 HD Graphics
System Memory Base on CPU Modules, Max to 8GB
Storage 1 x mSATA and 1 x SATA connector
2 x mSATA (Optional
2.5"HDD/SSD (Optional)
CFast slot (Optional)
1 x push-push USIM slot
Watchdog Timer Multistage Watchdog
I/O 4 x USB 3.0/2.0
2 x RS-232/422/485, 2 x RS-232
1 x HDMI
1 x 8-bit Isolation GPI
1 x 8-bit Isolation GPO
2 x GbE Ethernet
1 x Audio (Line-out), 1 x MIC
1 x Power Button
1 x LED for (HDD/SSD)
Expansion Slot 1 x full-size PCI Express Mini card (PCIe+USB+USIM)
1 x half-size PCI Express Mini card (PCIe+USB)
1 x USB2.0 internal
Power Supply 2-Pin Terminal Block DC Input 9V~32V±5%
DC internal Output 5V/0.75A ,12V/0.75A
Dimensions 138mm x 100mm x 57mm

Environmental

Operating Temperature 0°C ~ +60°C
-20°C ~ +70°C (Optional)
Storage Temperature -45°C ~ +85°C
Operating Humidity 10% - 90% (non-condensing)
Storage Humidity 5% - 95% (non-condensing)
Certificate CE / FCC class A
Optional OS Installation Microsoft® Windows 8
Microsoft® Windows 8 embedded
Microsoft® Windows 7
Microsoft® Windows 7 embedded compact
Linux
