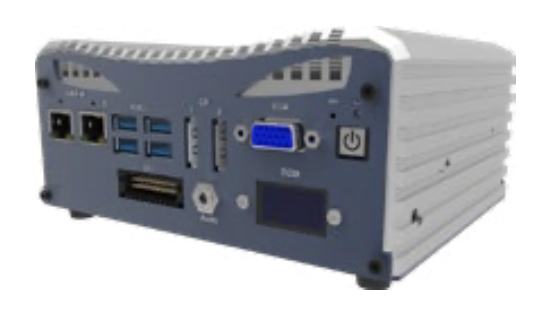

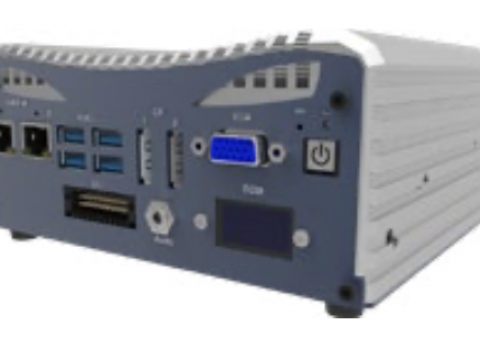

Eagle Eyes-AIML

Box PC

6th/7th gen Intel® platform (formerly Skylake/Kaby Lake), CoreTM U series processor

Part number: AIML6

Features

  • 6th/7th gen Intel® platform (formerly Skylake/Kaby Lake), CoreTM U series processor
  • Intelligent eKit with AI function to monitor system health via DDM
  • Special Power Design:
    • Wide voltage 9~36V DC input
    • RVP/OVP/UVP/OCP support
    • Surge protection: 80V/1ms
    • Power ignition control
  • Easy Expansion & Installation:
    • One side bezel access and easy cable management
    • Remote on/off power switch with LED
    • Easily replaceable RTC battery holder
    • 2x SIM push-push slots
Features
6th/7th Generation Intel® CoreTM U Series Processor Fanless Box Computer, 2x RJ45 GbE

System

6th Gen Intel® CoreTM (formerly Skylake U-Series) CoreTM i7-6600U (2/4 Cores, 2.6 GB/3.4 GHz, 4M Cache, 15W TDP)
CoreTM i5-6300U (2/4 Cores, 2.4 GHz/3.0 GHz, 3M Cache, 15W TDP)
CoreTM i3-6100U (2/4 Cores, 2.3 GHz, 3M Cache, 15W TDP)
Celeron® 3955U (2/2 Cores, 2.0 GHz, 2M Cache, 15W TDP)
7th Gen Intel® CoreTM (formerly Skylake U-Series) CoreTM i7-7600U (2/4 Cores, 2.8 GB/3.9 GHz, 4M Cache, 15W TDP)
CoreTM i5-7300U (2/4 Cores, 2.6 GHz/3.5 GHz, 3M Cache, 15W TDP)
CoreTM i3-7100U (2/4 Cores, 2.4 GHz, 3M Cache, 15W TDP)
Celeron® 3965U (2/2 Cores, 2.2 GHz, 2M Cache, 15W TDP)
Memory 1x SO-DIMM DDR4 2133 (32GB Max.)
Graphics Intel® HD Graphics 510 (3955U)
Intel® HD Graphics 520 (Skylake)
Intel® HD Graphics 610 (3965U)
Intel® HD Graphics 620 (Kaby Lake)
BIOS AMI 128Mbit SPI BIOS
AI Controller (AIC) AI system for monitoring and predictive analysis
Watchdog Timer Runtime: 10 – 65535 seconds
Powerup: 120 – 65535 seconds
TPM (optional) SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2)

Power

DC Input 9-36VDC
Surge Protection 80V/1ms
Power in Protection Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current
Remote/Ignition 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm)
Power Mode AT/ATX (BIOS setting)

Mechanical

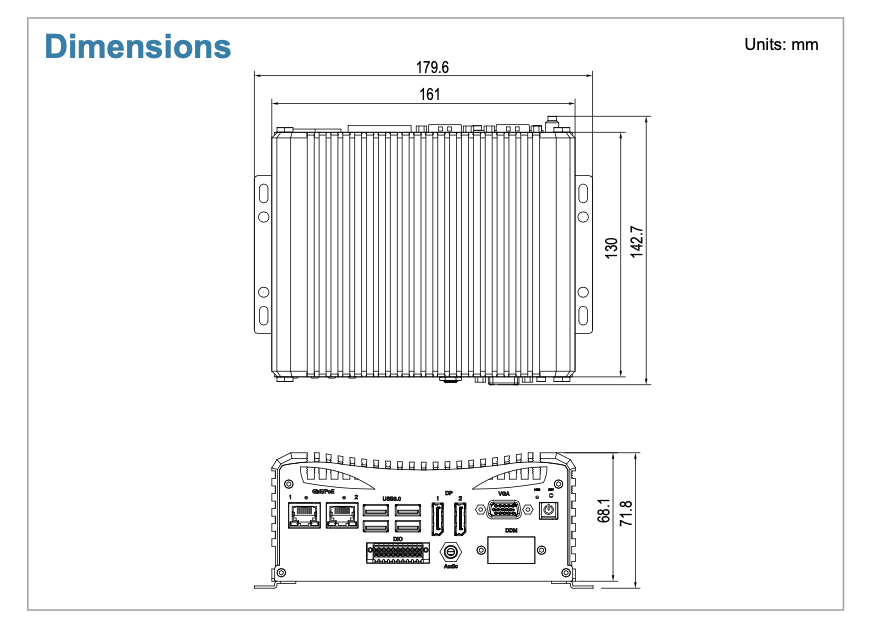

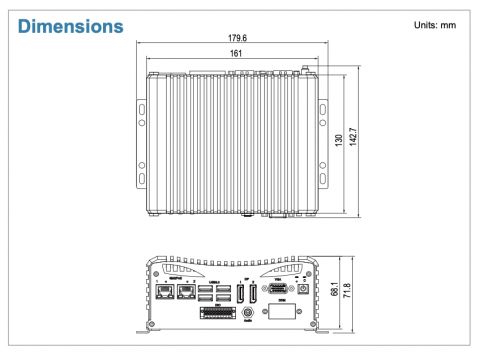

Dimensions (WxDxH) 161(W) x 130(D) x 68.1(H) mm (6.34" x 5.12" x 2.68")
Weight (net/gross) 1.7kg
Mounting Wall mount bracket, foot stand
Construction Aluminum and metal chassis with fanless design
Battery Easily replaceable RTC battery holder
Dynamic Display Module (DDM) 0.96 inch LCM work with AIC to display system status

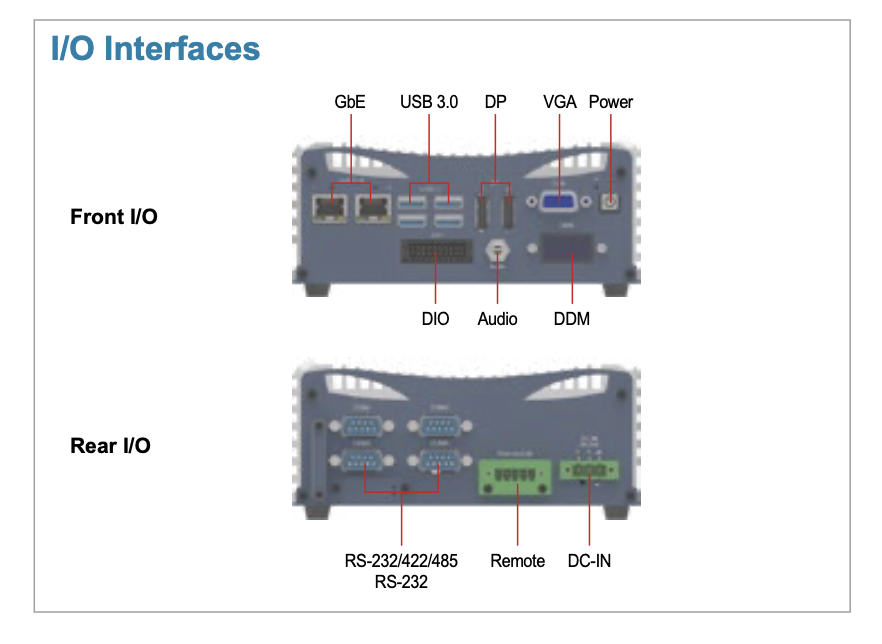

External IO

Display Ports/Resolution 2x DP 4096x2304@60Hz
1x VGA/1920x1200@60Hz
Triple Display Ports 2x DP + 1x VGA
Ethernet 4x M12 GbE (1x Intel® i219 + 3x Intel® i210) / Wake-on-LAN and PXE /
i219 supports iAMT 11.0 (AIMV6-i, AIM
PoE (optional) 4x M12 GbE (1x Intel® i219 + 3x Intel® i210) PoE+ 802.3at support up to
30W (AIMV6-Pi, AIMV6-P)
USB 3.0/2.0 4x USB 3.0 ports via native XHCI controller (0.9A each port)
COM 2x RS-232/422/485 (auto flow control), 2x RS-232 port
Digital I/O 16-bit programmable DIO (AIMV6, AIMV6-P)
8-bit isolated DI & 8-bit isolated DO, sink/source mode, 5~48V, 100mA
(AIMV6-i, AIMV6-Pi)
Audio ALC892 HD audio codec, Mic in, Line out
SIM 2x SIM push-push slots

Storage

Internal Drive Bay 1 x Internal SATA port for 2.5" HDD/SSD
mSATA 1x mSATA (muxed with Mini-PCIe)
M.2 1x M.2 M Key 2242

Expansion Slot

Mini-PCle 1x full length Mini-PCIe (PCIe/mSATA + USB + USIM)
1x full length Mini-PCIe (PCIe + USB + USIM)

Other

USB 2.0 Dongle Internal 1 x USB 2.0 for dongle secutity
Antenna 4x antenna openings
LED Power status, HDD status, IO status

Environment

Operating Temperature Standard: -20°C to 50°C (-4°F~122°F), supports 15W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 95% @ 40°C (104°F), non-condensing
Vibration During Operation 5Grms with SSD (IEC60068-2-64: random 5~500Hz)
Shock During Operation 50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration)

Certification

EMC CE/FCC Class A
Safety Certifications CB

OS Support

Windows Windows 7 32-bit/64-bit (Skylake only)
Windows 8.1 32-bit/64-bit (Skylake only)
Windows Embedded Standard 7(Skylake only)
Windows Embedded 8 Standard (Skylake only)
Windows 10 64-bit
Windows 10 IoT
Linux Linux

I/O Comparison Chart

Model Name DP VGA GbE (RJ45) DIO USB 3.0 RS-232 RS-232/422/485 Internal 2.5" Disk Bay
AIML6 2 1 2 16-bit DIO 4 3 1 1
AIML6-i 8-bit isolated DI & 8-bit isolated DO

Ordering Information:

  Model Name * Following models include Intel® 6th Gen Skylake U (SKL-U) platform, 2x DP, 1x VGA, 4x USB 3.0, 1x RS-232/422/485, 3x RS-232, 2x GbE (RJ45), 1x Internal SATA port for 2.5” HDD/SSD Article Number (A/N)
  AIML6-6600 CoreTM i7-6600U CPU, 16-bit DIO 02041
AIML6 AIML6-6300 CoreTM i5-6300U CPU, 16-bit DIO 02042
Barebone System AIML6-6100 CoreTM i3-6100U CPU, 16-bit DIO 02043
  AIML6-3955 Celeron® 3955U CPU, 16-bit DIO 02044
  AIML6-6600i CoreTM i7-6600U CPU, 8-bit isolated DI & 8-bit isolated DO 02045
AIML6-P AIML6-6300i CoreTM i5-6300U CPU, 8-bit isolated DI & 8-bit isolated DO 02046
Barebone System AIML6-6100i CoreTM i3-6100U CPU, 8-bit isolated DI & 8-bit isolated DO 02047
  AIML6-3955i Celeron® 3955U CPU, 8-bit isolated DI & 8-bit isolated DO 02048



Optional Accessories

Isolated Module
iDIO-818O 8-bit isolated DI & 8-bit isolated DO module
AC-DC Power Adapter AC-DC power adapter with pitch 5.0mm 3-pin terminal block plug
ADT-24V60-T3A 24V/60W
ADT-24V90-T3A 24V/90W
ADT-24V120-T3A 24V/120W
ADT-24V160-T3A 24V/160W
ADT-24V220-T3A 24V/220W
ADT-24V280-T3A 24V/280W
AC Power Cord H05VV-F 3G 0.75mm2, 1.8m, 250V, 10A
PCBL-B12 YP12-YC12:category B type plug, TW/JP/US/CA/TH/PH/Central America
PCBL-D03 YP03-YC12:category D type plug, CN
PCBL-D35 YP35-YC12:category D type plug, AU/NZ
PCBL-G22 YP22-YC12:category G type plug, DE
PCBL-I61 YP61-YC12:category I type plug, UK/HK/MO/SG/MY
SO-DIMM Memory DDR4-2133/2400 2GB/4GB/8GB/16GB/32GB
SSD mSATA SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB
2.5 inch SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB
2.5 inch HDD: 500GB/1TB/1.5TB/2TB
Wireless Module Mini-PCIe wireless module for 3G/4G LTE/Wi-Fi/BT/NB-IoT/GPS/BDS
Cable & Connector
CBL-S01 SATA (Data + Power) cable x1
TBP5-S03 3-Pin, pitch5.0mm Female Terminal Block Plug for DC input x1
TBP3-S05 5-Pin, pitch 3.81mm Female Terminal Block Plug for remote connector x 1
TBP3-D20 2x10-Pin, pitch2.54mm Female Terminal Block Plug for DIO connector x1
Mounting Kit
WBK-AIH Wall mount bracket x2 with M2.5x5 screws x4



Packing Slip

Item No.
1 Eagle Eyes Embedded Box PC AIML x1
2 Rubber foot x 4 with M2.5x5 screws x 4
