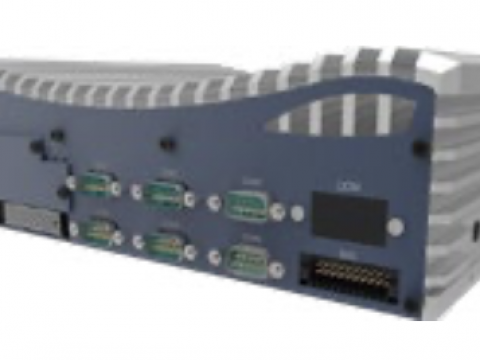

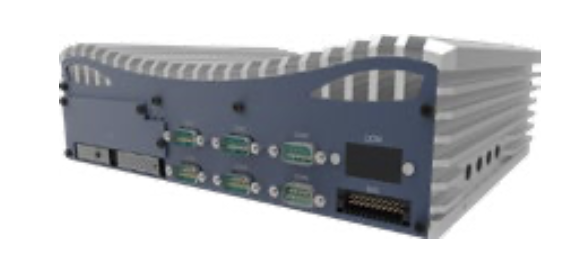

Eagle Eyes-AIHL-W1

Box PC

6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake) LGA1151 socket type CPU (supports TDP up to 35W)

Part number: AIHL-W1


  • 6th/7th gen Intel platform (formerly Skylake/Kaby Lake), Xeon E3/Core S i7, i5, i3, Pentium and Celeron processor
  • Supports LGA1151 socket desktop processor up to 35W
  • Intelligent eKit with AI function to monitor system health via DDM
  • Special Power Design:
  • Wide voltage 9~36V DC input
  • RVP/OVP/UVP/OCP support
  • Surge protection: 200V/1ms
  • Power ignition control
  • Easy Expansion & Installation:
  • One side bezel access and easy cable management
  • Remote on/off power switch with LED
  • Easily replaceable RTC battery holder
  • 3x SIM push-push slots
  • 2x M.2 2280 NVMe (PCIe x4) supported optional
  • Features
    6th/7th Generation Intel® Xeon® E3/CoreTM S Series (FCLGA1151 Socket) Box Computer, 2x RJ45 GbE
    CPU 6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake)
    LGA1151 socket type CPU (supports TDP up to 35W)
    Chipset Intel® C236 Chipset
    Memory 2x DDR4 SO-DIMM Max. 64GB
    (Skylake: DDR4-2133; Kaby Lake: DDR4-2400)
    Graphics Xeon®: HD Graphics P530 (Skylake)/P630 (Kaby Lake)
    CoreTM I Series: HD Graphics 530 (Skylake)/630 (Kaby Lake)
    Pentium®/Celeron®: HD Graphics 510 (Skylake)/610 (Kaby Lake)
    AI Controller (AIC) AI for system monitoring and predictive analysis
    Watchdog Timer Runtime: 10 – 65535 seconds
    Powerup: 120 – 65535 seconds
    TPM (optional) SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2)


    DC Input 9~36VDC
    Surge Protection 200V/1ms
    Power in Protection Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current
    Remote/Ignition 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm)
    Power Mode AT/ATX (BIOS setting)

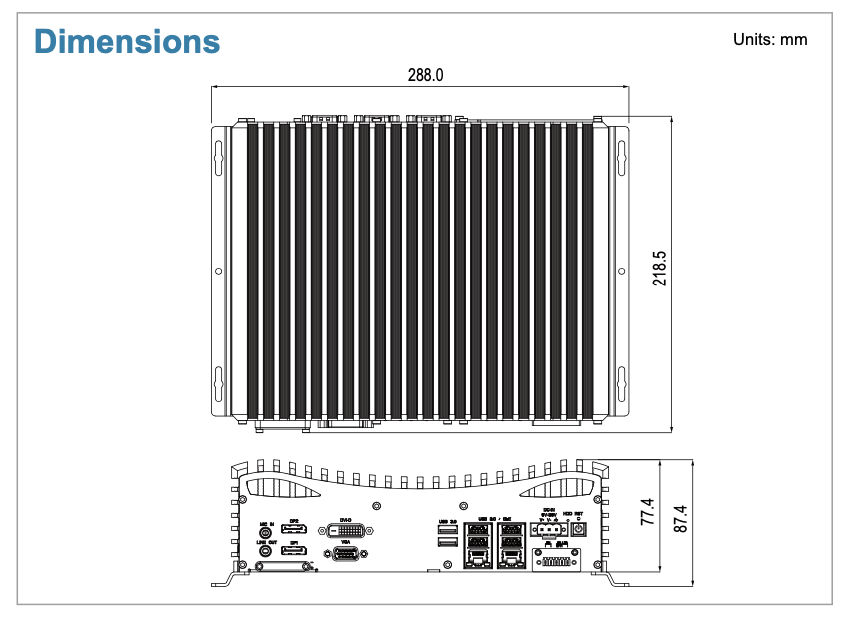

    Dimensions (WxDxH) 260(W) x 206(D) x 77.42(H) mm (10.24" x 8.11" x 3.05")
    Weight (net/gross) 3.7kg
    Mounting Foot stand; wall mount bracket (optional)
    Construction Aluminum and metal chassis with fanless design
    Battery Easily replaceable RTC battery holder
    Dynamic Display Module (DDM)
    0.96 inch LCM work with AIC to display system status

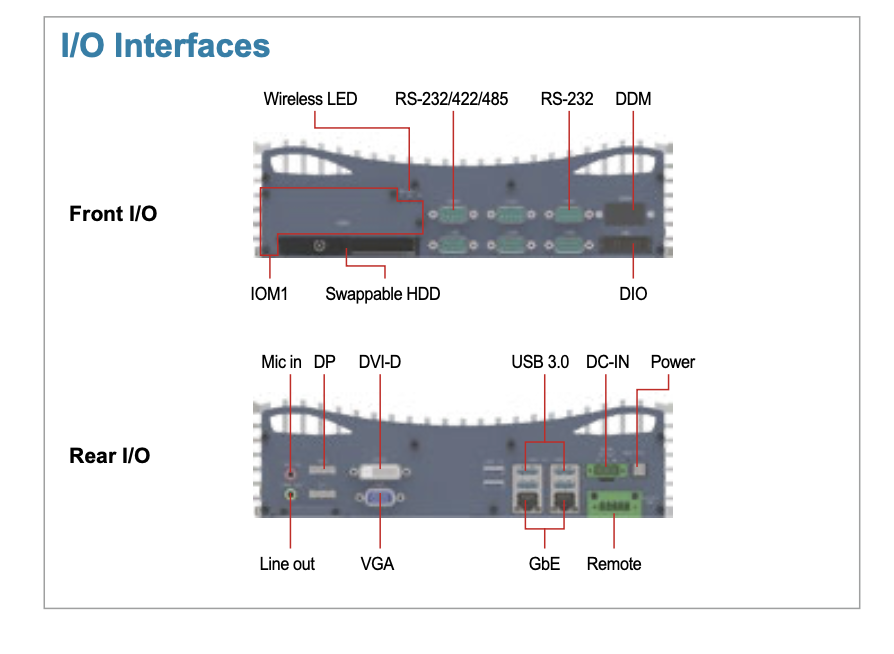

    External IO

    Display Ports / Resolution 2x DP/4096x2304@60Hz
    1x DVI-D/1920x1200@60Hz
    1x VGA/1920x1200@60Hz
    Triple Display Ports Combinations 2x DP + 1x DVI-D
    2x DP + 1x VGA
    1x DP + 1x DVI-D + 1x VGA
    Ethernet 2x RJ45 GbE (Intel® i219 + Intel® i210) / Wake-on-LAN and PXE/i219 supports iAMT 11.0
    PoE (optional) NA
    USB 3.0/2.0 6x USB 3.0 ports via native XHCI controller (0.9A each port)
    COM 2x RS-232/422/485 (auto flow control), 4x RS-232 port
    Digital I/O 16-bit programmable DIO (AIHL-W1)
    8-bit isolated DI & 8-bit isolated DO, Sink/Source Mode, 5~48V, 100mA
    Audio ALC892 HD audio codec, Mic in, Line out
    SIM 3x SIM push-push slots


    Internal Drive Bay 2x internal SATA port for 2.5” HDD/SSD
    mSATA 3x full length mSATA (muxed with Mini-PCIe)
    Removable Drive Bay 1x swappable 2.5" HDD/SSD
    NVMe Support 2x M.2 2280 NVMe supported via expansion slot optional
    RAID Mode RAID 0/1/5

    Expansion Slot

    Mini-PCle 3x full length Mini-PCIe (muxed with mSATA, auto detection)
    IOM1 (optional) Supports IOM1 module


    USB 2.0 Dongle Internal 1x USB 2.0 for dongle security key
    Antenna 4x antenna openings
    LED Power status, HDD status, IO status


    Operating Temperature Standard: -20°C to 50°C (-4°F~122°F), supports 35W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F)
    Storage Temperture -40°C to 85°C (-40°F to 185°F)
    Relative Humidity 95% @ 40°C (104°F), non-condensing
    Vibration During Operation 5Grms with SSD (IEC60068-2-64: random 5~500Hz)
    Shock During Operation 50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration)


    EMC CE/FCC Class A
    Safety Certifications CB

    OS Support

    Windows Windows 7 32-bit/64-bit (Skylake only)
    Windows 8.1 32-bit/64-bit (Skylake only)
    Windows Embedded Standard 7(Skylake only)
    Windows Embedded 8 Standard (Skylake only)
    Windows 10 64-bit
    Windows 10 loT
    Linux Linux

    I/O Comparison Chart

    Model Name DP DVI-D VGA GbE (RJ45) DIO USB 3.0 RS-232 RS-232/422/485 External 2.5" Disk Bay Internal 2.5" Disk Bay
    AIHL-W1 2 1 1 2 16-bit DIO 6 4 2 1 2
    AIHL-W1-i 8-bit isolated DI & 8-bit isolated DO

    Ordering Information:

    Model Name Article Number (A/N)
    AIHL-W1 Barebone System 01226
    AIHL-W1-i Barebone System 01227
    AIHL-W1-NVMe Barebone System 01A76
    AIHL-W1-i-NVMe Barebone System 01A77


    CPU (Optional)
    6th Gen Skylake
    E3-1268Lv5 Xeon® E3-1268L v5 (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP)
    i7-6700TE CoreTM i7-6700TE (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP)
    i5-6500TE CoreTM i5-6500TE (4 cores/4 threads, 2.3 GHz/3.3 GHz, 6MB cache, 35 W TDP)
    i3-6100TE CoreTM i3-6100TE (2 cores/4 threads, 2.7 GHz, 4MB cache, 35 W TDP)
    G4400TE Pentium® G4400TE (2 cores/2 threads, 2.4 GHz, 3MB cache, 35 W TDP)
    G3900TE Celeron® G3900TE (2 cores/2 threads, 2.3 GHz, 2MB cache, 35 W TDP)
    7th Gen Kaby Lake
    i7-7700T CoreTM i7-7700T (4 cores/8 threads, 2.9 GHz/3.8 GHz, 8MB cache, 35W TDP)
    i5-7500T CoreTM i5-7500T (4 cores/4 threads, 2.7 GHz/3.3 GHz, 6MB cache, 35W TDP)
    i3-7101TE CoreTM i3-7101TE (2 cores/4 threads, 3.4 GHz, 3MB cache, 35W TDP)

    Optional Accessories

    IOM1 Module

    IOMH3-4GR 4x RJ45 GbE
    IOMH3-4GRP 4x RJ45 GbE with PoE (30.4W each port)
    IOMH3-4GM 4x M12 GbE
    IOMH3-4GMP 4x M12 GbE with PoE (30.4W each port)
    IOMH3-4U3 4x USB 3.0

    Isolated Module

    iDIO-8I8O 8-bit isolated DI & 8-bit isolated DO module

    Other Accessories

    AC-DC Power Adapter - AC-DC power adapter with pitch 5.0mm 3-pin terminal block plug

    ADT-24V60-T3A 24V/60W
    ADT-24V90-T3A 24V/90W
    ADT-24V120-T3A 24V/120W
    ADT-24V160-T3A 24V/160W
    ADT-24V220-T3A 24V/220W
    ADT-24V280-T3A 24V/280W

    AC Power Cord - H05VV-F 3G 0.75mm2, 1.8m, 250V, 10A

    PCBL-B12 YP12-YC12:category B type plug, TW/JP/US/CA/TH/PH/Central America
    PCBL-D03 YP03-YC12:category D type plug, CN
    PCBL-D35 YP35-YC12: category D type plug, AU/NZ
    PCBL-G22 YP22-YC12:category G type plug, DE
    PCBL-I61 YP61-YC12:category I type plug, UK/HK/MO/SG/MY

    SO-DIMM Memory - DDR4-2133/2400 2GB/4GB/8GB/16GB/32GB

    SSD mSATA SSD:16GB/32GB/64GB/128GB/256GB/512GB/1TB
    2.5 inch SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB
    2.5 inch HDD: 500GB/1TB/1.5TB/2TB

    Wireless Module

    Mini-PCIe wireless module for 3G/4G LTE/Wi-Fi/BT/NB-IoT/GPS/BDS

    Cable & Connector

    CBL-S01 SATA (Data + Power) cable x1
    TBP5-S03 3-Pin, pitch5.0mm Female Terminal Block Plug for DC input x1
    TBP-S05 5-Pin, pitch 3.81mm Female Terminal Block Plug for remote connector x1
    TBP3-D20 2x10-Pin, pitch2.54mm Female Terminal Block Plug for DIO connector x1

    Mounting Kit

    WBK-AIH Wall mount bracket x2 with M3x6 screws x6

    Packing List

    Item No.

    1 Eagle Eyes Embedded Box PC AIHL-W1 x 1
    2 Rubber foot x4 with M3x6 screws x6
