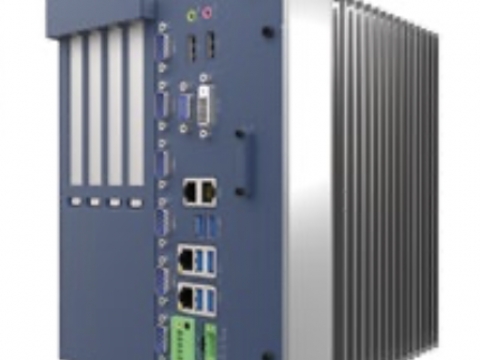

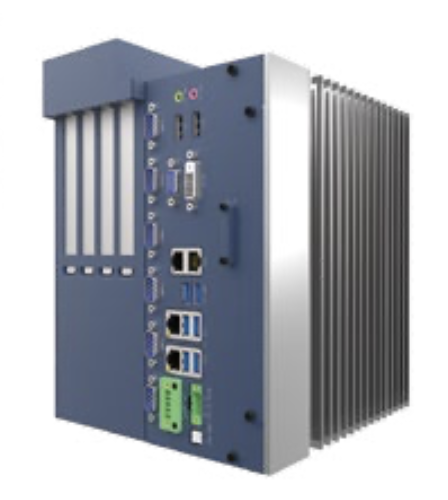

Eagle Eyes-AIHD-GP4E

Box PC

6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake) LGA1151 socket type CPU (supports TDP up to 35W)

Part number: AIHD(S)-GP4E1

Features

  • 6th/7th gen Intel platform (formerly Skylake/Kaby Lake), Xeon E3/Core S i7, i5, i3, Pentium and Celeron processor
  • Supports LGA1151 socket desktop processor up to 35W
  • Intelligent eKit with AI function to monitor system health via DDM
  • Special Power Design:
    • Wide voltage 9~36V DC input
    • RVP/OVP/UVP/OCP support
    • Surge protection: 200V/1ms
    • Power ignition control
  • Easy Expansion & Installation:
    • One side bezel access and easy cable management
    • Remote on/off power switch with LED
    • Easily replaceable RTC battery holder
    • 3x SIM push-push slots
Features
6th/7th Generation Intel® Xeon® E3/CoreTM S Series (FCLGA1151 Socket) DIN Rail Box Computer

System

CPU 6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake)
LGA1151 socket type CPU (supports TDP up to 35W)
Chipset Intel® C236 Chipset
Memory 2x DDR4 SO-DIMM Max. 64GB (Skylake: DDR4-2133; Kaby Lake: DDR4-2400)
Graphics Xeon®: HD Graphics P530 (Skylake)/P630 (Kaby Lake)
CoreTM I Series: HD Graphics 530 (Skylake)/630 (Kaby Lake)
Pentium®/Celeron®: HD Graphics 510 (Skylake)/610 (Kaby Lake)
BIOS AMI 128Mbit SPI BIOS
AI Controller (AIC) AI for system monitoring and predictive analysis
Watchdog Timer Runtime: 10 – 65535 seconds
Powerup: 120 – 65535 seconds
TPM (optional) SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2)

Power

DC Input 9~36VDC
Surge Protection 200V/1ms
Power in Protection Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current
Remote/Ignition 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm)
Power Mode AT/ATX (BIOS setting)

Mechanical

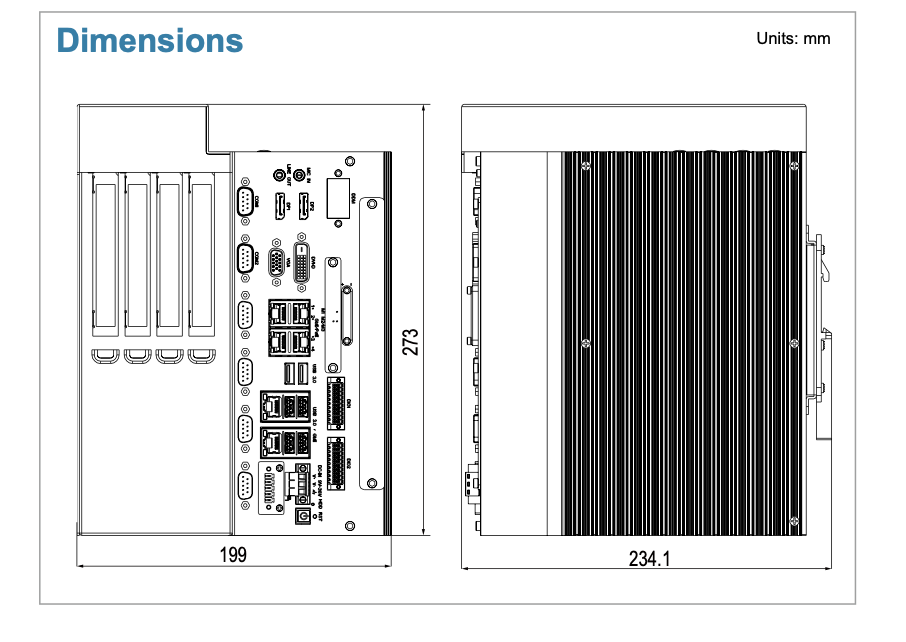

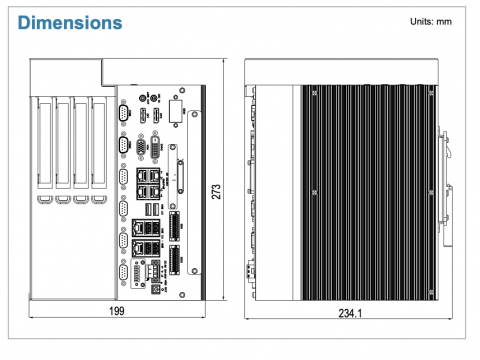

Dimensions (WxDxH) 199(W) x 206(D) x 273(H) mm (7.83" x 8.11" x 10.75")
Weight (net/gross) 6.8kg
Mounting DIN rail mounst, wall mount bracket and foot stand
Construction Aluminum and metal chassis with fanless design
Battery Easily replaceable RTC battery holder
Dynamic Display Module (DDM) 0.96 inch LCM work with AIC to display system status

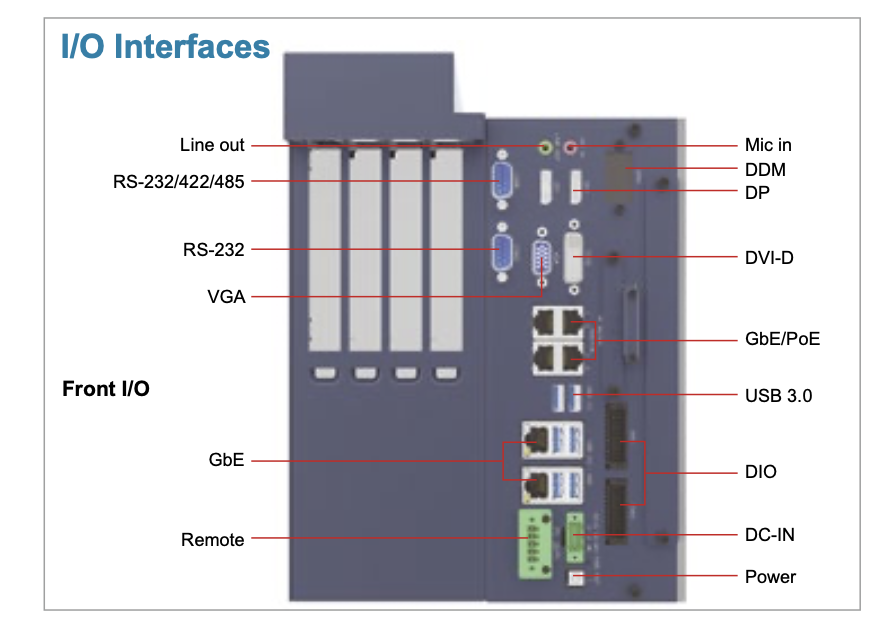

External IO

Display Ports / Resolution 2x DP/4096x2304@60Hz
1x DVI-D/1920x1200@60Hz
1x VGA/1920x1200@60Hz
Triple Display Ports Combinations 2x DP + 1x DVI-D
2x DP + 1x VGA
1x DP + 1x DVI-D + 1x VGA
Ethernet Wake-on-LAN and PXE/i219 supports iAMT 11.0
6x RJ45 GbE (1x Intel® i219 + 5x Intel® i210)-AIHD(S)GP4E1/GP4E2
2x RJ45 GbE (1x Intel® i219 + 1x Intel® i210)-AIDHP(S)-GP4E1/GP4E2
PoE (optional) 802.3at support up to 30W
4x RJ45 GbE PoE+ (Intel® i210 ) AIHDP(S)-GP4E1/GP4E2
Digital I/O 32-bit programmable DIO
(AIHD(S)-GP4E1/GP4E2, AIHDP(S)-GP4E1/GP4E2)
16-bit programmable DIO, isolated 8-bit DI & 8-bit DO, sink/source mode,
5~48V, 100mA (AIHD(S)-GP4E1-i/GP4E2-i, AIHDP(S)-GP4E1-i/GP4E2-i)
16-bit isolated DI & 16-bit isolated DO, sink/source mode, 5~48V, 100mA
(AIHD(S)-GP4E1-i2, AIHDP(S)-GP4E1-i2)
USB 3.0/2.0 6x USB 3.0 ports via native XHCI controller (0.9A each port)
COM 1x RS-232/422/485 (auto flow control), 1x RS-232 port
Audio ALC892 HD audio codec, Mic in, Line out
SIM 3x SIM push-push slots

Storage

Internal Drive Bay 3x internal SATA port for 2.5” HDD/SSD
mSATA 3x full length mSATA (muxed with Mini-PCIe)
Removable Drive Bay NA
RAID Mode RAID 0/1/5

Expansion Slot

Mini-PCle 3x full length Mini-PCIe (muxed with mSATA, auto detection)
PCI / PCle 1x PCIe x16 + 3x PCI (AIHD(S)-GP4E1/GP4E1-i/GP4E1-i2, AIHDP(S)-GP4E1/GP4E1-i/GP4E1-i2)
1x PCIe x16 + 1x PCIe x4 (AIHD(S)-GP4E2/GP4E2-i/GP4E2-i2, AIHDP(S)-GP4E2/GP4E2-i/GP4E2-i2)

Other

USB 2.0 Dongle Internal 1x USB 2.0 for dongle security key
Antenna 4x antenna openings
LED Power status, HDD status, IO status

Environment

Operating Temperature Standard: -20°C to 50°C (-4°F~122°F), supports 35W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F)
Storage Temperture -40°C to 85°C (-40°F to 185°F)
Relative Humidity 95% @ 40°C (104°F), non-condensing
Vibration During Operation 5Grms with SSD (IEC60068-2-64: random 5~500Hz)
Shock During Operation 50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration)

Certification

EMC CE/FCC Class A
Safety Certifications CB

OS Support

Windows Windows 7 32-bit/64-bit (Skylake only)
Windows 8.1 32-bit/64-bit (Skylake only)
Windows Embedded Standard 7(Skylake only)
Windows Embedded 8 Standard (Skylake only)
Windows 10 64-bit
Windows 10 loT
Linux Linux

I/O Comparison Chart

Model Name DP DVI-D VGA GbE (RJ45) GbE/PoE (RJ45) DIO USB 3.0 RS-232 RS-232/422/485 Internal 2.5" Disk Bay Expansion Slot
AIHD(S)-GP4E1 2 1 1 6 0 32-bit DIO 6 1 1 3 1x PCIe x16, 3x PCI
AIHD(S)-GP4E1-i 16-bit DIO, isolated 8-bit DI & 8-bit isolated DO
AIHD(S)-GP4E1-i2 isolated 16-bit DI & 16-bit DO
AIHDP(S)-GP4E1 2 4 32-bit DIO
AIHDP(S)-GP4E1-i 16-bit DIO, isolated 8-bit DI & 8-bit isolated DO
AIHDP(S)-GP4E1-i2 isolated 16-bit DI & 16-bit DO
AIHD(S)-GP4E2 6 0 32-bit DIO 1x PCIe x16, 1x PCI x4
AIHD(S)-GP4E2-i 16-bit DIO, isolated 8-bit DI & 8-bit DO
AIHD(S)-GP4E2-i2 isolated 16-bit DI & 1-bit DO
AIHDP(S)-GP4E2 2 4 32-bit DIO
AIHDP(S)-GP4E2-i 16-bit DIO, isolated 8-bit DI & 8-bit DO
AIHDP(S)-GP4E2-i2 isolated 16-bit DI & 16-bit DO

Ordering Information:

  Model Name Article Number (A/N)
Barebone System With Fan Kit AIHD-GP4E1 04001
AIHD-GP4E1-i 04002
AIHD-GP4E1-i2 04003
AIHD-GP4E2 04211
AIHD-GP4E2-i 04212
AIHD-GP4E2-i2 04213
Barebone System Without Fan Kit AIHDS-GP4E1 04036
AIHDS-GP4E1-i 04037
AIHDS-GP4E1-i2 04038
AIHDS-GP4E2 04246
AIHDS-GP4E2-i 04247
AIHDS-GP4E2-i2 04248

CPU (Optional)

6th Gen Skylake
E3-1268Lv5 Xeon® E3-1268L v5 (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP)
i7-6700TE CoreTM i7-6700TE (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP)
i5-6500TE CoreTM i5-6500TE (4 cores/4 threads, 2.3 GHz/3.3 GHz, 6MB cache, 35 W TDP)
i3-6100TE CoreTM i3-6100TE (2 cores/4 threads, 2.7 GHz, 4MB cache, 35 W TDP)
G4400TE Pentium® G4400TE (2 cores/2 threads, 2.4 GHz, 3MB cache, 35 W TDP)
G3900TE Celeron® G3900TE (2 cores/2 threads, 2.3 GHz, 2MB cache, 35 W TDP)
7th Gen Kaby Lake
i7-7700T CoreTM i7-7700T (4 cores/8 threads, 2.9 GHz/3.8 GHz, 8MB cache, 35W TDP)
i5-7500T CoreTM i5-7500T (4 cores/4 threads, 2.7 GHz/3.3 GHz, 6MB cache, 35W TDP)
i3-7101TE CoreTM i3-7101TE (2 cores/4 threads, 3.4 GHz, 3MB cache, 35W TDP)

PCIe x16GPU Card (Optional)

  Model Name Article Number (A/N)
nVIDIA series GeForce GTX 1050-3G 9981-1050
GeForce GTX 1050Ti-4G 9981-1050Ti
GeForce GTX 1060-6G 9981-1060
GeForce GTX 1070-8G 9981-1070
GeForce GTX 1080-8G 9981-1080
GeForce GTX 1650-4G 9981-1650
GeForce GTX 1660-6G 9981-1660
GeForce GTX 1660Ti-6G 9981-1660Ti
GeForce RTX 2060-6G 9981-2060
GeForce RTX 2070-8G 9981-2070

Optional Accessories

Isolated Module

iDIO-8I8O 8-bit isolated DI & 8-bit isolated DO module

Other Accessories

AC-DC Power Adapter - AC-DC power adapter with pitch 5.0mm 3-pin terminal block plug

ADT-24V60-T3A 24V/60W
ADT-24V90-T3A 24V/90W
ADT-24V120-T3A 24V/120W
ADT-24V160-T3A 24V/160W
ADT-24V220-T3A 24V/220W
ADT-24V280-T3A 24V/280W

AC Power Cord - H05VV-F 3G 0.75mm2, 1.8m, 250V, 10A

PCBL-B12 YP12-YC12: category B type plug, TW/JP/US/CA/TH/PH/Central America
PCBL-D03 YP03-YC12: category D type plug, CN
PCBL-D35 YP35-YC12: category D type plug, AU/NZ
PCBL-G22 YP22-YC12: category G type plug, DE
PCBL-I61 YP61-YC12: category I type plug, UK/HK/MO/SG/MY

SO-DIMM Memory - DDR4-2133/2400 2GB/4GB/8GB/16GB/32GB

SSD mSATA SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB
2.5 inch SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB
2.5 inch HDD: 500GB/1TB/1.5TB/2TB

Wireless Module

Mini-PCIe wireless module for 3G/4G LTE/Wi-Fi/BT/NB-IoT/GPS/BDS

Cable & Connector

CBL-S01 SATA (Data + Power) cable x1
TBP5-S03 3-Pin, pitch5.0mm Female Terminal Block Plug for DC input x1
TBP3-S05 5-Pin, pitch3.81mm Female Terminal Block Plug for remote connector x1
TBP3-D20 2x10-Pin, pitch2.54mm Female Terminal Block Plug for DIO connector x1

Mounting Kit

WBK-AIH Wall mount bracket x2 with M3x6 screws x6
UTA-159 Phoenix Contact DIN Rail Clip with M3x6 screws x6

Packing List

Item No.

1 Eagle Eyes Embedded Box PC AIHD x1
