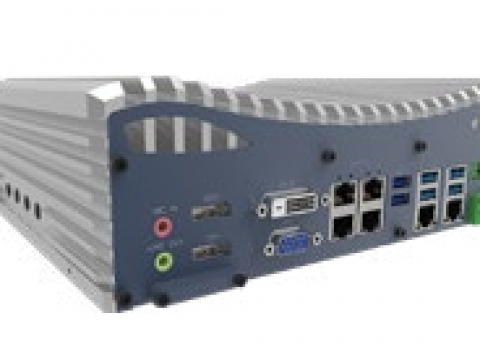

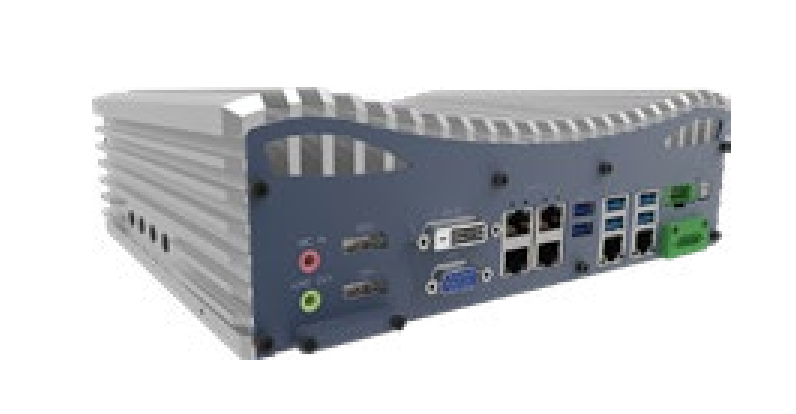

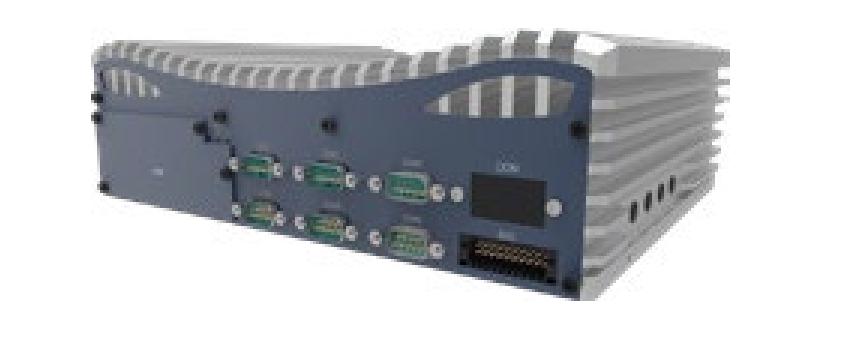

Eagle Eyes-AIH

Box PC

6th/7th gen Intel Xeon E3/CoreS (formerly Skylake/Kaby Lake) LGA1151 socket type CPU (supports TDP up to 35W)

Part number: AIH, AIH-i, AIH-NVMe, AIH-i-NVMe

Features

  • 6th/7th gen Intel® platform (formerly Skylake/Kaby Lake), Xeon® E3/CoreTM S i7, i5, i3, Pentium® and Celeron® processor
  • Supports LGA1151 socket desktop processor up to 35W
  • Intelligent eKit with AI function to monitor system health via DDM
  • Special Power Design:
    • Wide voltage 9~36V DC input
    • RVP/OVP/UVP/OCP support
    • Surge protection: 200V/1ms
    • Power ignition control
  • Easy Expansion & Installation:
    • One side bezel access and easy cable management
    • Remote on/off power switch with LED
    • Easily replaceable RTC battery holder
    • 3x SIM push-push slots
    • 2x M.2 2280 NVMe (PCIe x4) supported optional
Features
6th/7th Generation Intel Xeon E3/Core™ S Series (FCLGA1151 Socket) Box Computer, 2x RJ45 GbE, 4x RJ45 GbE/PoE

System

CPU 6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake)
LGA1151 socket type CPU (supports TDP up to 35W)
Chipset Intel® C236 Chipset
Memory 2x DDR4 SO-DIMM Max. 64GB
(Skylake: DDR4-2133; Kaby Lake: DDR4-2400)
Graphics Xeon®: HD Graphics P530 (Skylake)/P630 (Kaby Lake)
CoreTM I Series: HD Graphics 530 (Skylake)/630 (Kaby Lake)
Pentium®/Celeron®: HD Graphics 510 (Skylake)/610 (Kaby Lake)
BIOS AMI 128Mbit SPI BIOS
AI Controller (AIC) AI for system monitoring and predictive analysis
Watchdog Timer Runtime: 10 – 65535 seconds
Powerup: 120 – 65535 seconds
TPM (optional) SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2)

Power

DC Input 9~36VDC
Surge Protection 200V/1ms
Power in Protection Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current
Remote/Ignition 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm)
Power Mode AT/ATX (BIOS setting)

Mechanical

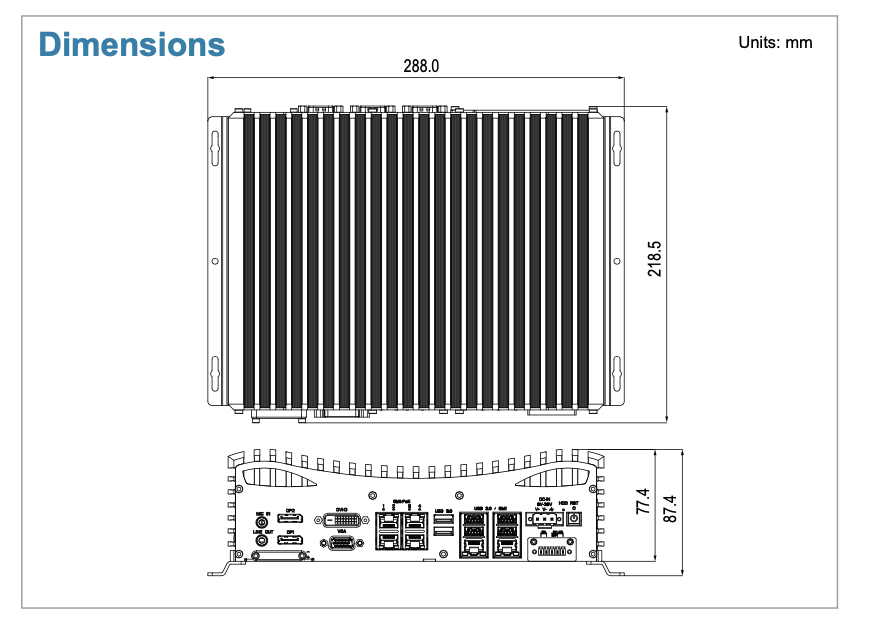

Dimensions (WxDxH) 260(W) x 206(D) x 77.42(H) mm (10.24" x 8.11" x 3.05")
Weight (net/gross) 3.7kg
Mounting Foot stand; wall mount bracket (optional)
Construction Aluminum and metal chassis with fanless design
Battery Easily replaceable RTC battery holder
Dynamic Display Module (DDM)
0.96 inch LCM work with AIC to display system status

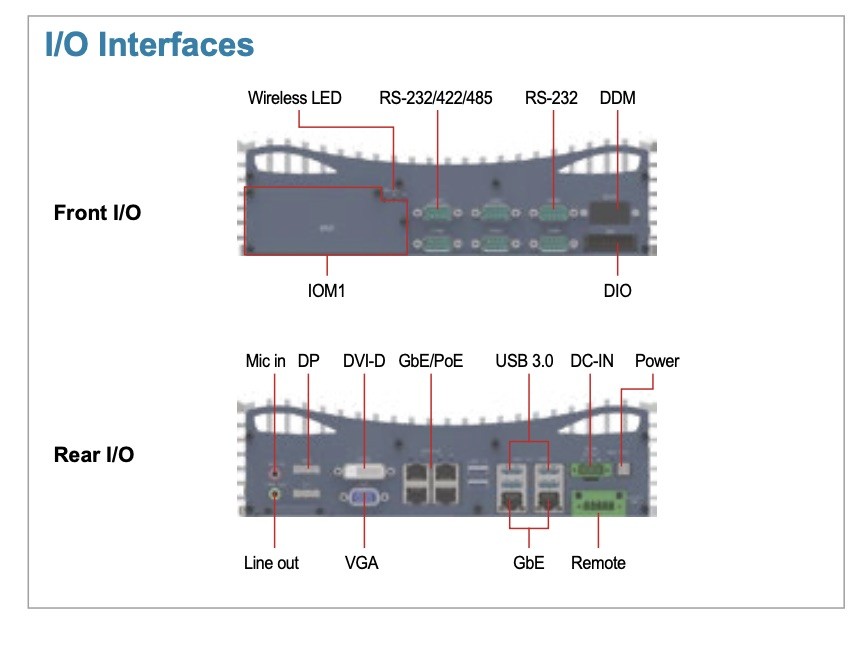

External IO

Display Ports / Resolution 2x DP/4096x2304@60Hz
1x DVI-D/1920x1200@60Hz
1x VGA/1920x1200@60Hz
Triple Display Ports Combinations 2x DP + 1x DVI-D
2x DP + 1x VGA
1x DP + 1x DVI-D + 1x VGA
Ethernet 2x RJ45 GbE (Intel® i219 + Intel® i210) / Wake-on-LAN and PXE/i219 supports iAMT 11.0
PoE (optional) 4x RJ45 GbE PoE+ (Intel® i210 ) 802.3at support up to 30W
USB 3.0/2.0 6x USB 3.0 ports via native XHCI controller (0.9A each port)
COM 2x RS-232/422/485 (auto flow control), 4x RS-232 port
Digital I/O 16-bit programmable DIO (AIH)
8-bit isolated DI & 8-bit isolated DO, Sink/Source Mode, 5~48V, 100mA
(AIH-i)
Audio ALC892 HD audio codec, Mic in, Line out
SIM 3x SIM push-push slots

Storage

Internal Drive Bay 3x internal SATA port for 2.5” HDD/SSD
mSATA 3x full length mSATA (muxed with Mini-PCIe)
Removable Drive Bay NA
NVMe Support 2x M.2 2280 NVMe supported via expansion slot optional
RAID Mode RAID0/1/5

Expansion Slot

Mini-PCle 3x full length Mini-PCIe (muxed with mSATA, auto detection)
IOM1 (optional) Supports IOM1 module

Other

USB 2.0 Dongle Internal 1x USB 2.0 for dongle security key
Antenna 4x antenna openings
LED Power status, HDD status, IO status

Environment

Operating Temperature Standard: -20°C to 50°C (-4°F~122°F), supports 35W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F)
Storage Temperture -40°C to 85°C (-40°F to 185°F)
Relative Humidity 95% @ 40°C (104°F), non-condensing
Vibration During Operation 5Grms with SSD (IEC60068-2-64: random 5~500Hz)
Shock During Operation 50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration)

Certification

EMC CE/FCC Class A
Safety Certifications CB

OS Support

Windows Windows 7 32-bit/64-bit (Skylake only)
Windows 8.1 32-bit/64-bit (Skylake only)
Windows Embedded Standard 7(Skylake only)
Windows Embedded 8 Standard (Skylake only)
Windows 10 64-bit
Windows 10 loT
Linux Linux

I/O Comparison Chart

Model Name DP DVI-D VGA GbE (RJ45) GbE/PoE (RJ45) DIO USB 3.0 RS-232 RS-232/422/485 M.2 2280 NVMe Internal 2.5" Disk Bay
AIH 2 1 1 2 4 16-bit DIO 6 4 2 0 3
AIH-i 8-bit isolated DI & 8-bit isolated DO
AIH-NVMe 16-bit DIO 2
AIH-i-NVMe 8-bit isolated DI & 8-bit isolated DO

Ordering Information:

Model Name Article Number (A/N)
AIH Barebone System 01001
AIH-i Barebone System 01002
AIH-NVMe Barebone System 01A01
AIH-i-NVMe Barebone System 01A02
CPU (Optional)
6th Gen Skylake
E3-1268Lv5 Xeon® E3-1268L v5 (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP)
i7-6700TE CoreTM i7-6700TE (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP)
i5-6500TE CoreTM i5-6500TE (4 cores/4 threads, 2.3 GHz/3.3 GHz, 6MB cache, 35 W TDP)
i3-6100TE CoreTM i3-6100TE (2 cores/4 threads, 2.7 GHz, 4MB cache, 35 W TDP)
G4400TE Pentium® G4400TE (2 cores/2 threads, 2.4 GHz, 3MB cache, 35 W TDP)
G3900TE Celeron® G3900TE (2 cores/2 threads, 2.3 GHz, 2MB cache, 35 W TDP)
7th Gen Kaby Lake
i7-7700T CoreTM i7-7700T (4 cores/8 threads, 2.9 GHz/3.8 GHz, 8MB cache, 35W TDP)
i5-7500T CoreTM i5-7500T (4 cores/4 threads, 2.7 GHz/3.3 GHz, 6MB cache, 35W TDP)
i3-7101TE CoreTM i3-7101TE (2 cores/4 threads, 3.4 GHz, 3MB cache, 35W TDP)

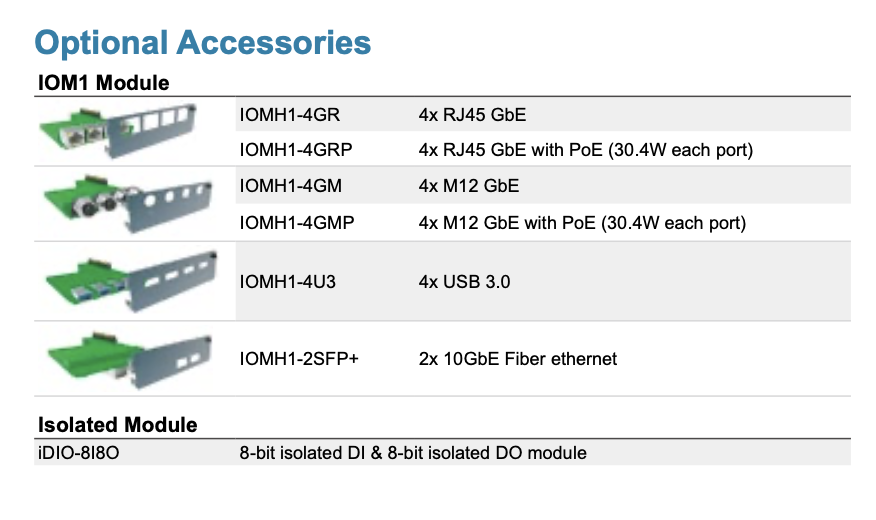

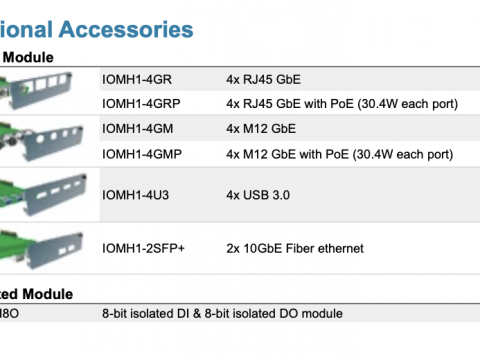

Optional Accessories

IOM1 Module

IOMH1-4GR 4x RJ45 GbE
IOMH1-4GRP 4x RJ45 GbE with PoE (30.4W each port)
IOMH1-4GM 4x M12 GbE
IOMH1-4GMP 4x M12 GbE with PoE (30.4W each port)
IOMH1-4U3 4x USB 3.0
IOMH1-2SFP+ 2x 10GbE Fiber ethernet

Isolated Module

iDIO-8I8O 8-bit isolated DI & 8-bit isolated DO module

Other Accessories

AC-DC Power Adapter - AC-DC power adapter with pitch 5.0mm 3-pin terminal block plug

ADT-24V60-T3A 24V/60W
ADT-24V90-T3A 24V/90W
ADT-24V120-T3A 24V/120W
ADT-24V160-T3A 24V/160W
ADT-24V220-T3A 24V/220W
ADT-24V280-T3A 24V/280W

AC Power Cord - H05VV-F 3G 0.75mm2, 1.8m, 250V, 10A

PCBL-B12 YP12-YC12:category B type plug, TW/JP/US/CA/TH/PH/Central America
PCBL-D03 YP03-YC12:category D type plug, CN
PCBL-D35 YP35-YC12: category D type plug, AU/NZ
PCBL-G22 YP22-YC12:category G type plug, DE
PCBL-I61 YP61-YC12:category I type plug, UK/HK/MO/SG/MY

SO-DIMM Memory - DDR4-2133/2400 2GB/4GB/8GB/16GB/32GB

SSD mSATA SSD:16GB/32GB/64GB/128GB/256GB/512GB/1TB
2.5 inch SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB
2.5 inch HDD: 500GB/1TB/1.5TB/2TB

Wireless Module

Mini-PCIe wireless module for 3G/4G LTE/Wi-Fi/BT/NB-IoT/GPS/BDS

Cable & Connector

CBL-S01 SATA (Data + Power) cable x1
TBP5-S03 3-Pin, pitch5.0mm Female Terminal Block Plug for DC input x1
TBP-S05 5-Pin, pitch 3.81mm Female Terminal Block Plug for remote connector x1
TBP3-D20 2x10-Pin, pitch2.54mm Female Terminal Block Plug for DIO connector x1

Mounting Kit

WBK-AIH Wall mount bracket x2 with M3x6 screws x6

Packing List

Item No.

1 Eagle Eyes Embedded Box PC AIH x 1
2 Rubber foot x4 with M3x6 screws x6
