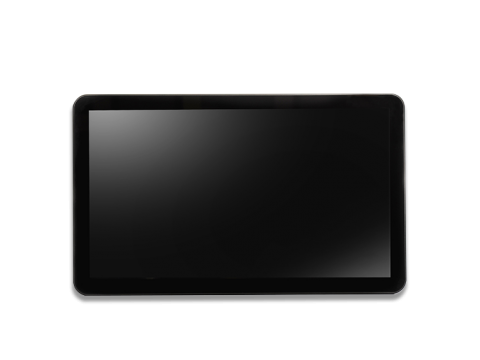

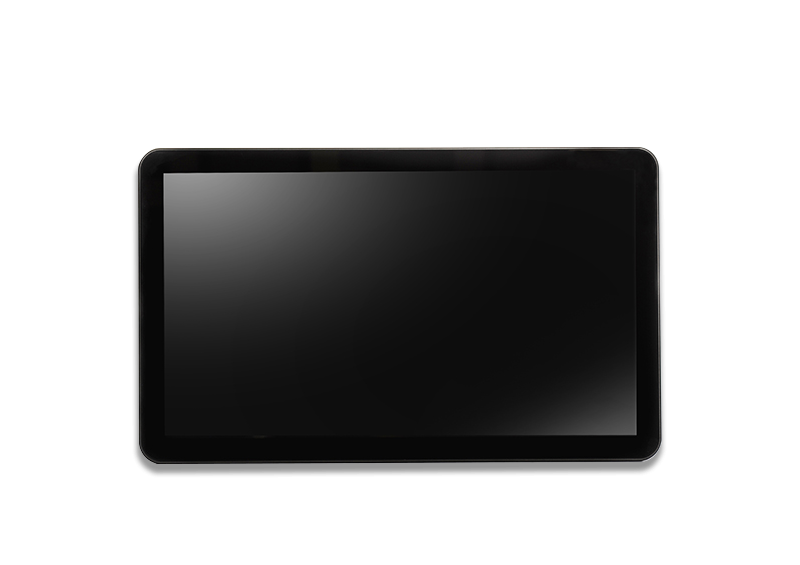

Brilliant 21

Panel PC

21.5"Full HD TFT Fanless Multi Touch Panel Computer with Intel® Celeron® Quad Core Processor J1900

Part number: TPC-5220

Features

  • 21.5" Full HD TFT with projected capacitive multi-touch
  • Fanless design with Intel® Celeron® Quad Core Processor J1900
  • Support IP54 at front panel
  • Sunlight readable (Optional)
  • Panel and touch enhancement for industrial applications (Optional)
  • Support VESA arm/desktop/stand/wall mount/panel mount
Features


System

CPU

  • Intel® AtomTM Quad Core J1900

Chipset

  • SoC integrated

Memory

  • 2 x 204 pin DDR3L 1333 max. up to 8GB

HDD

  • 1 x 2.5" SATA HDD supported

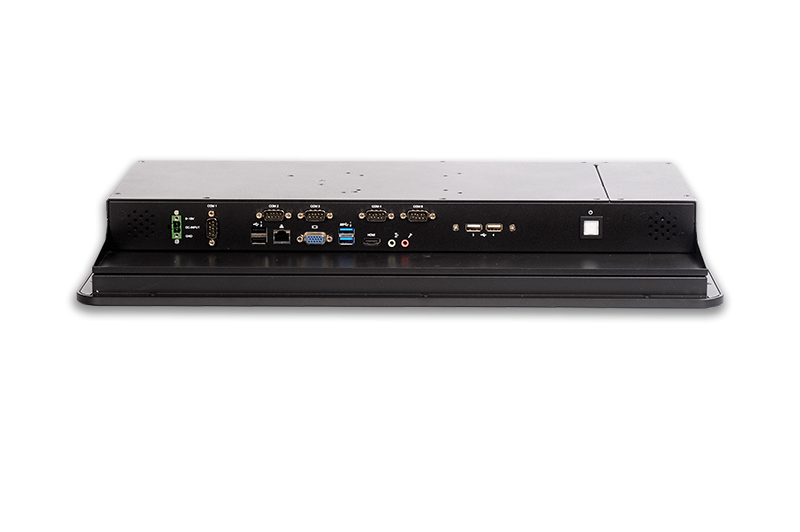

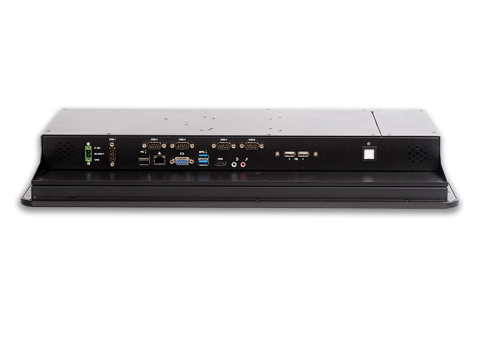

I/O Port

  • 1 HDMI ,1 x VGA
  • 4 x USB 2.0
  • 2 x USB 3.0
  • 1 x RS-232/422/485
  • 4 x RS-232
  • 1 x Audio (Mic-in)
  • 1 x Audio (Speaker-out)

Ethernet

  • 1 x 10/100/1000Mbps Ethernet

Expansion Slot

  • 1 x Full-size PCI Express Mini card (either MiniCard or mSATA, and by Jumper setting)
  • 1 x Half-size PCI Express Mini card (for optional Wireless module)

Display

Size

  • 21.5”

Resolution

  • 1920 x 1080 (16:9 wide)

Contrast

  • 1000

Pixel Pitch

  • 248 x 248 (um)

Viewing Angle

  • 170 x 160 (H/V)

Response Time

  • 5ms

Color

  • 16.7M

Brightness

  • 250 (cd /m²)

Life time HR

  • 30000 Hrs

Touchscreen

  • Projected Capacitive Multi-Touch

Power Supply

  • DC version: 9~19VDC
  • AC version: 12VDC w/adaptor

Mechanical

Dimension

  • 528mm (W) x 319mm (D) x 70mm (H)

Weight

  • 9.8kg / 11.2kg

Mounting

  • Panel and VESA

Environmental

Operating Temperature

  • 0°C - +50°C(32°F - +122°F)

HDD Temperature

  • 0°C - +40°C(32°F - +104°F)

Relative Humidity

  • Operating: 10%~95%

Certifications

  • CE / FCC

Optional OS Installation

  • Windows® 7
  • Windows® 8.1
  • Linux
