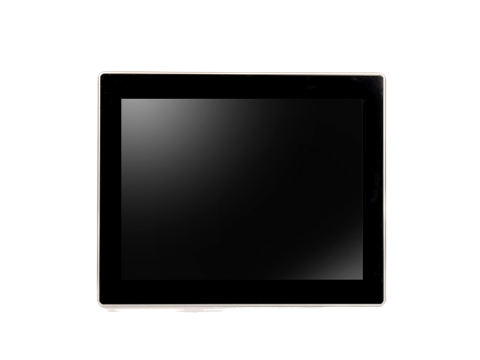

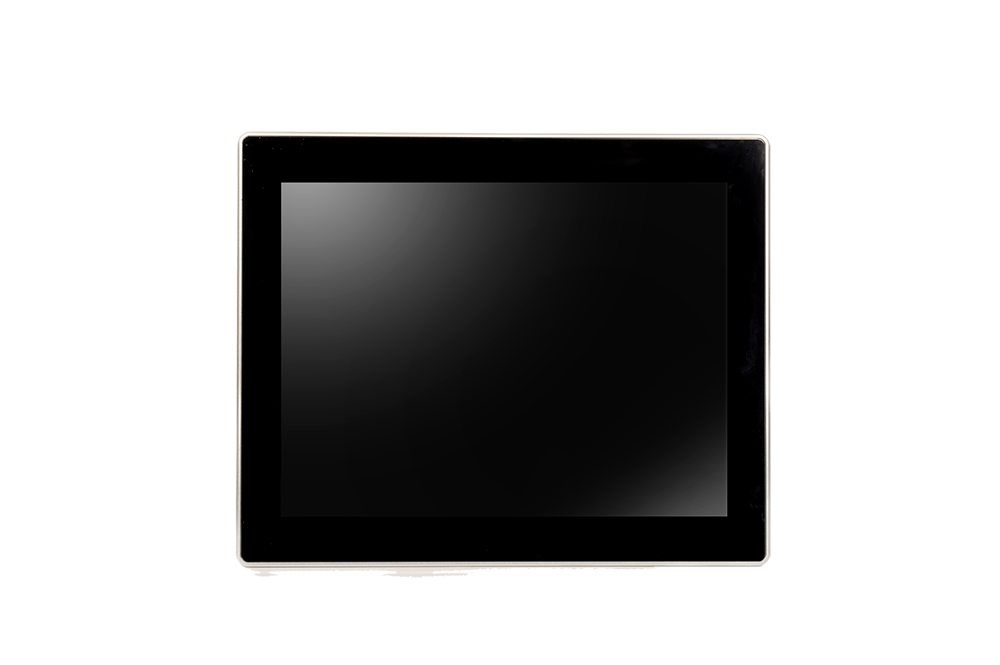

Brilliant 15

Panel PC

15" XGA TFT fanless multi-touch panel computer with with Intel® Celeron® 4-core Processor J1900

Part number: TPC-5215

Features

  • Supports IP54 at front panel
  • Optional for sunlight readable
  • Optional for panel and touch enhancement for industrial applications
  • Support VESA arm/desktop/stand/wall mount/panel mount
Features


System

CPU

  • Intel® Atom™ Quad Core J1900

Chipset

  • SoC integrated

Memory

  • 2 x 204 pin DDR3L 1333 max. up to 8GB

HDD

  • 1 x 2.5" SATA HDD supported

Watchdog

  • 255 levels, 0~255 sec.

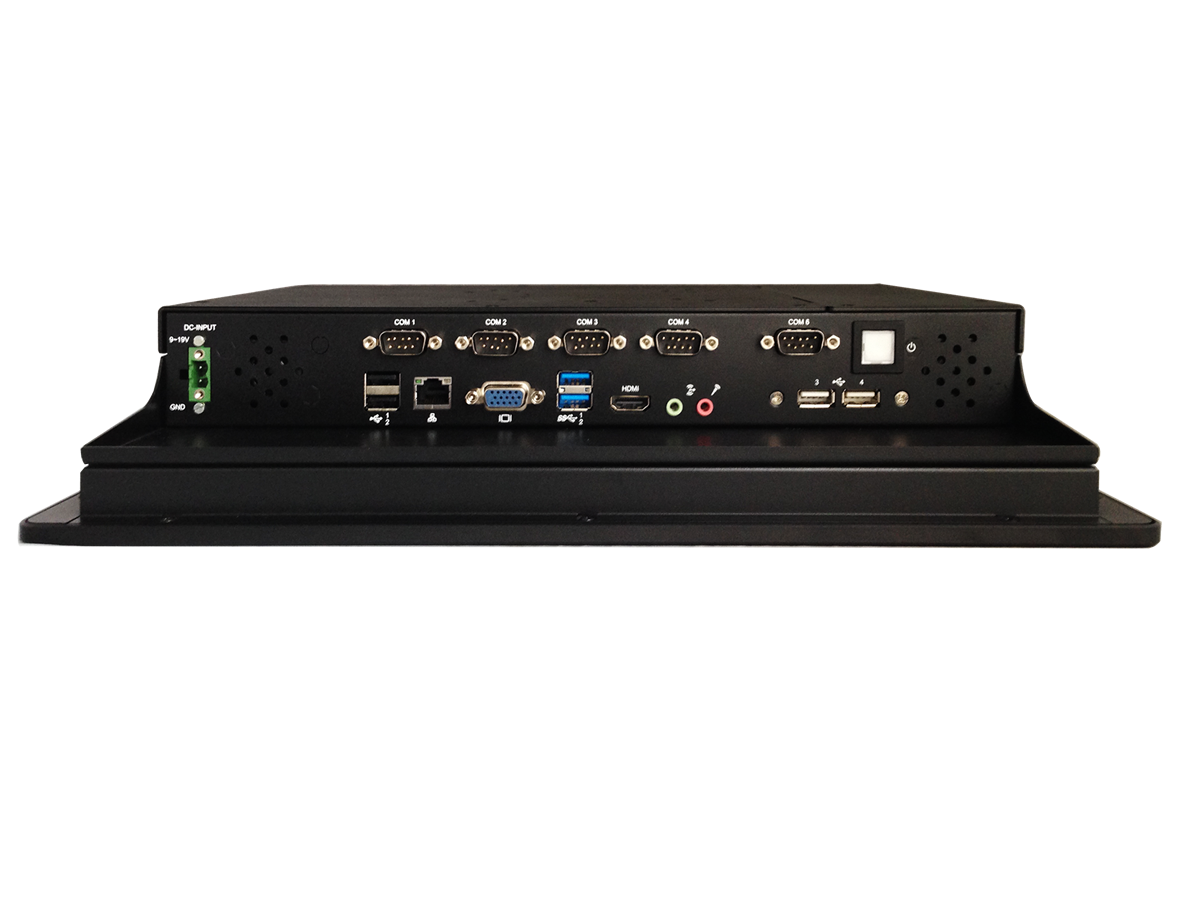

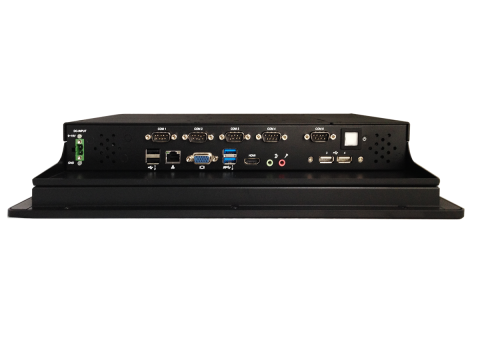

I/O Port

  • 1 x HDMI
  • 4 x USB 2.0
  • 2 x USB 3.0
  • 1 x RS-232/422/485
  • 4 x RS-232
  • 1 xAudio(Mic-in)
  • 1 xAudio(Line-out)

Graphics Controller

  • Intel® Gen7 Intel Graphics DX 11*, OGL3.2

Ethernet

  • 1 x 10/100/1000Mbps Ethernet

Expansion Slot

  • 1 x full-size PCI Express Mini card  slot

Display

Size

  • 15”

Resolution

  • 1024 x 768 (4:3)

Contrast

  • 600

Pixel Pitch

  • 297 x 297 (um)

Viewing Angle

  • 160 x 160 (H/V)

Response Time

  • 8.5ms

Color

  • 16.7M

Brightness

  • 250 (cd /m²)

Life time HR

  • 30000 Hrs

Touchscreen

  • Projected Capacitive Multi-Touch

Power Supply

  • DC version: 9~19VDC
  • AC version: 12VDC w/adaptor

Mechanical

Dimension

  • 364.1mm (W) x 296.1mm (D) x 68.9mm (H)

Weight

  • 4.5kg / 6kg

Mounting

  • Panel and VESA

Environmental

Operating Temperature

  • 0°C ~ +50°C

HDD Temperature

  • 0°C - +40°C

Relative Humidity

  • Operating: 10%~90%

Certification

  • CE

Optional OS Installation

  • Windows® 7
  • Windows® 8.1
