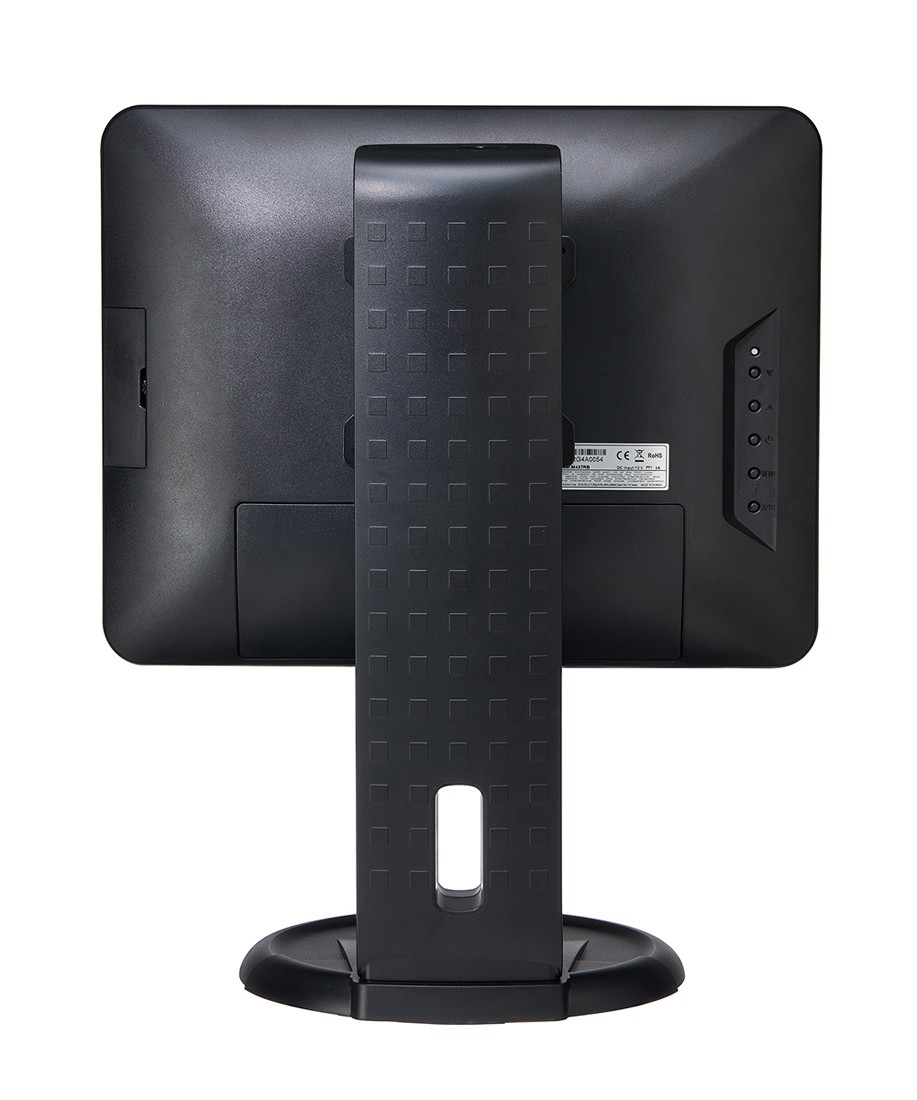

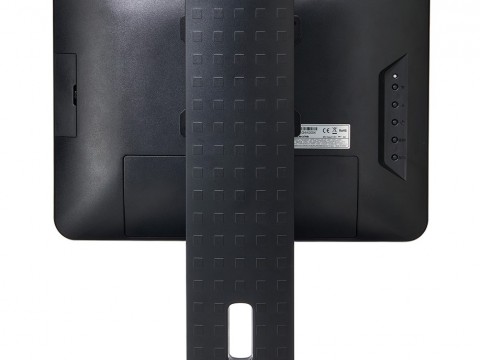

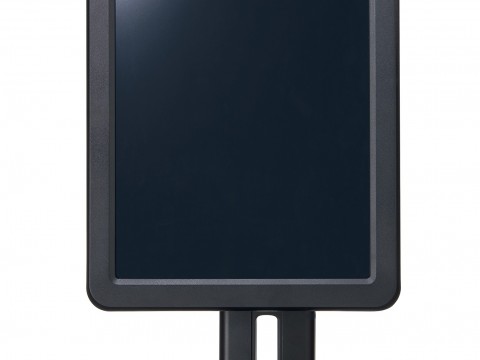

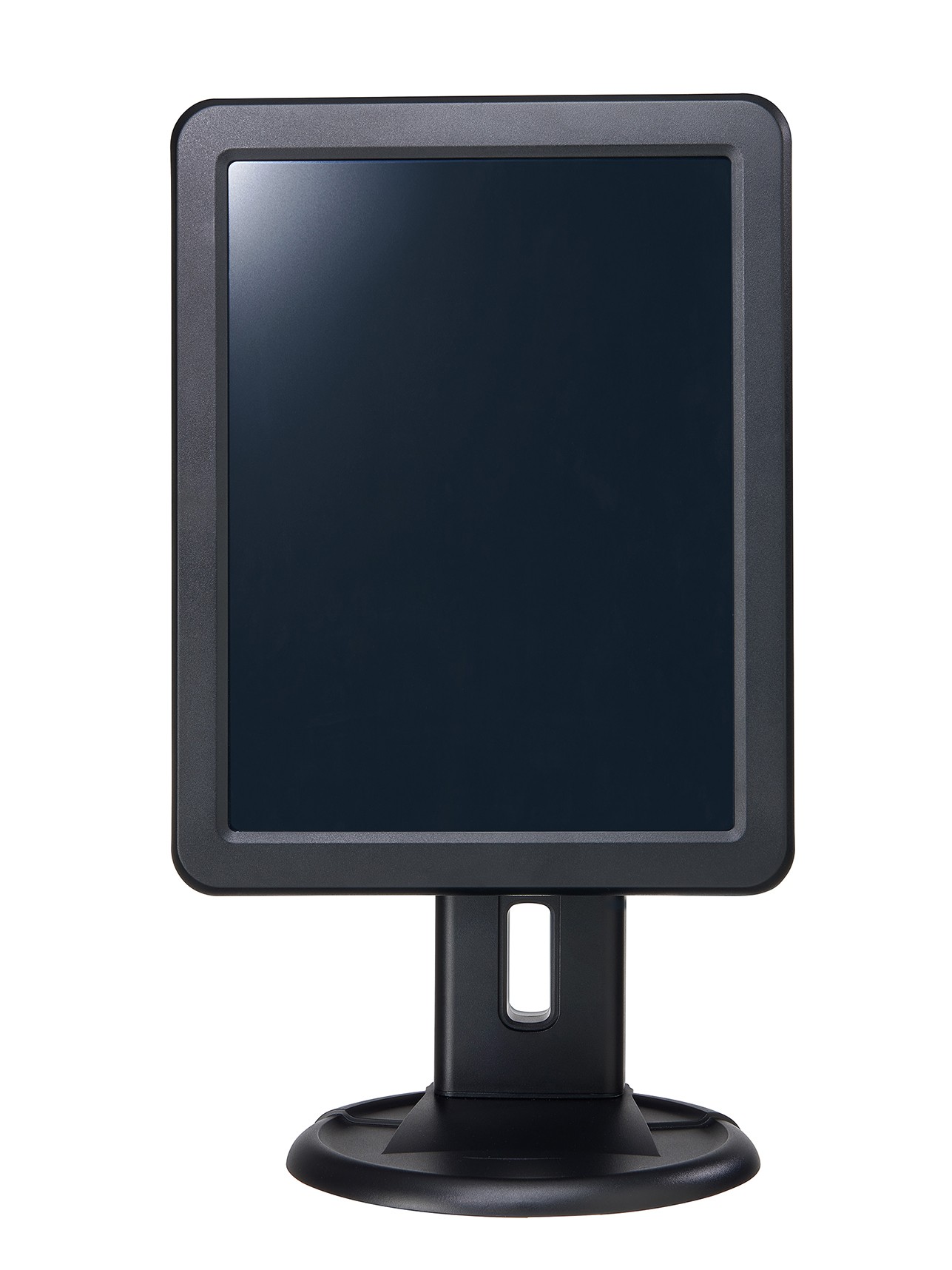

TPM-I15M

Industrial Monitor

The TPM-I15M is a 15" colour TFT LCD Touch panel monitor suitable for many different types of applications

Part number: TPM-I15M

Features

  • Optimal display resolution 1024 * 768
  • VESA 75 * 75 mm wall mount standard
  • Durable and sturdy base design
  • Optional: 3 tracks Magnetic Strip Reader (MSR)
  • Optional: varieties of 2nd displays (8”, 10.4”…)

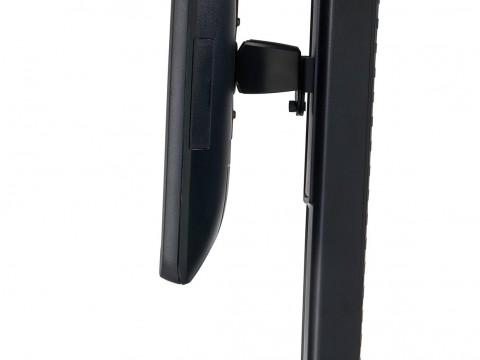

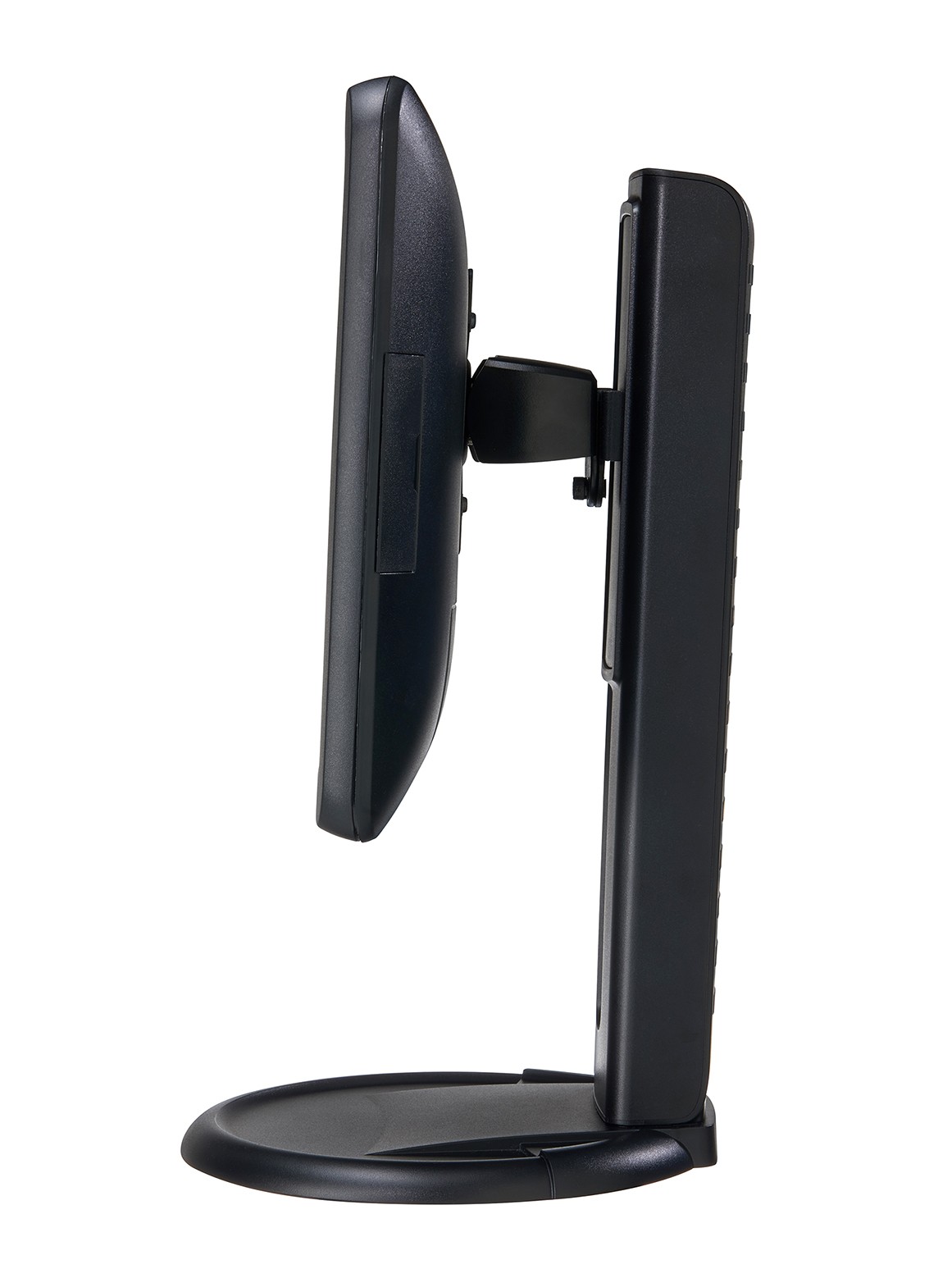

  • Adjustable viewing angle (freely up to 90°C horizontally)
  • Low power consumption only 20W with LED backlight
Features

Specifications

Cabinet color​

  • Black

Display size​

  • 15.0"

Active Area​

  • 304 * 228 mm

Optimal Resolution

  • 1024 * 768

Color Arrangement​

  • RGB-stripe

Brightness / LCD PANEL​

  • 350 cd/m² (typ.)

Contrast Ratio​

  • 700:1

Response Time​

  • 8 ms (typ.)

Viewing Angle​

  • 170 degrees (H) , 160 degrees (V)

Input Video Format​

  • VGA/DVI

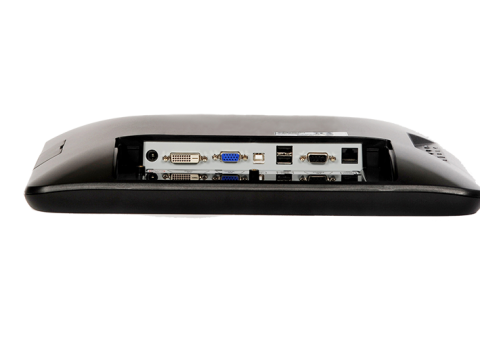

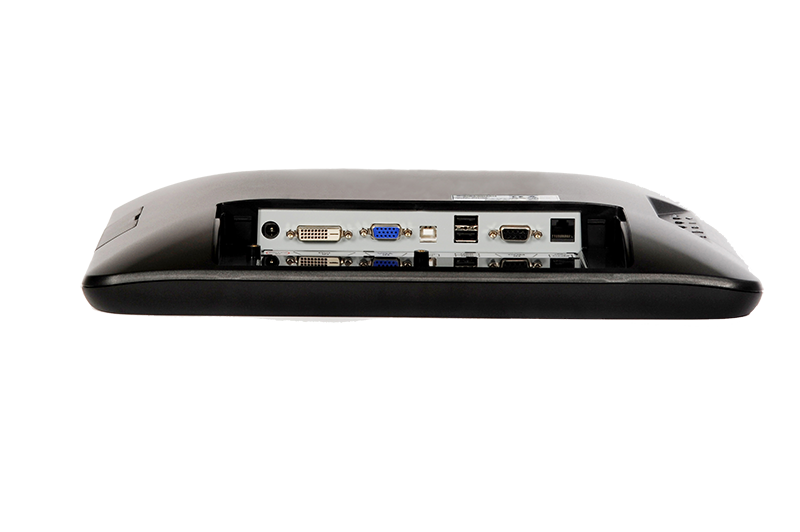

Input Video signal connector

  • D-Sub 15 pins + DVI-D

Power consumption

  • 20W

Input Frequency​

  • Horizontal: 31.5 kHz~60.2 kHz
  • Vertical : 56.3Hz~75Hz

Power supply​

  • DC 12V +/- 10%

Temperature​​

  • Operating: 0°C ~55°C
  • Storage: -20°C ~65°C

Humidity​

  • Operating: 10%~90%
  • Storage: 10%~90%

Weight​

  • 3.5kg(net)
  • 4.6kg with stand (net)

Approvals​

  • CE, FCC

Wall Mount​

  • VESA 75 * 75 mm
